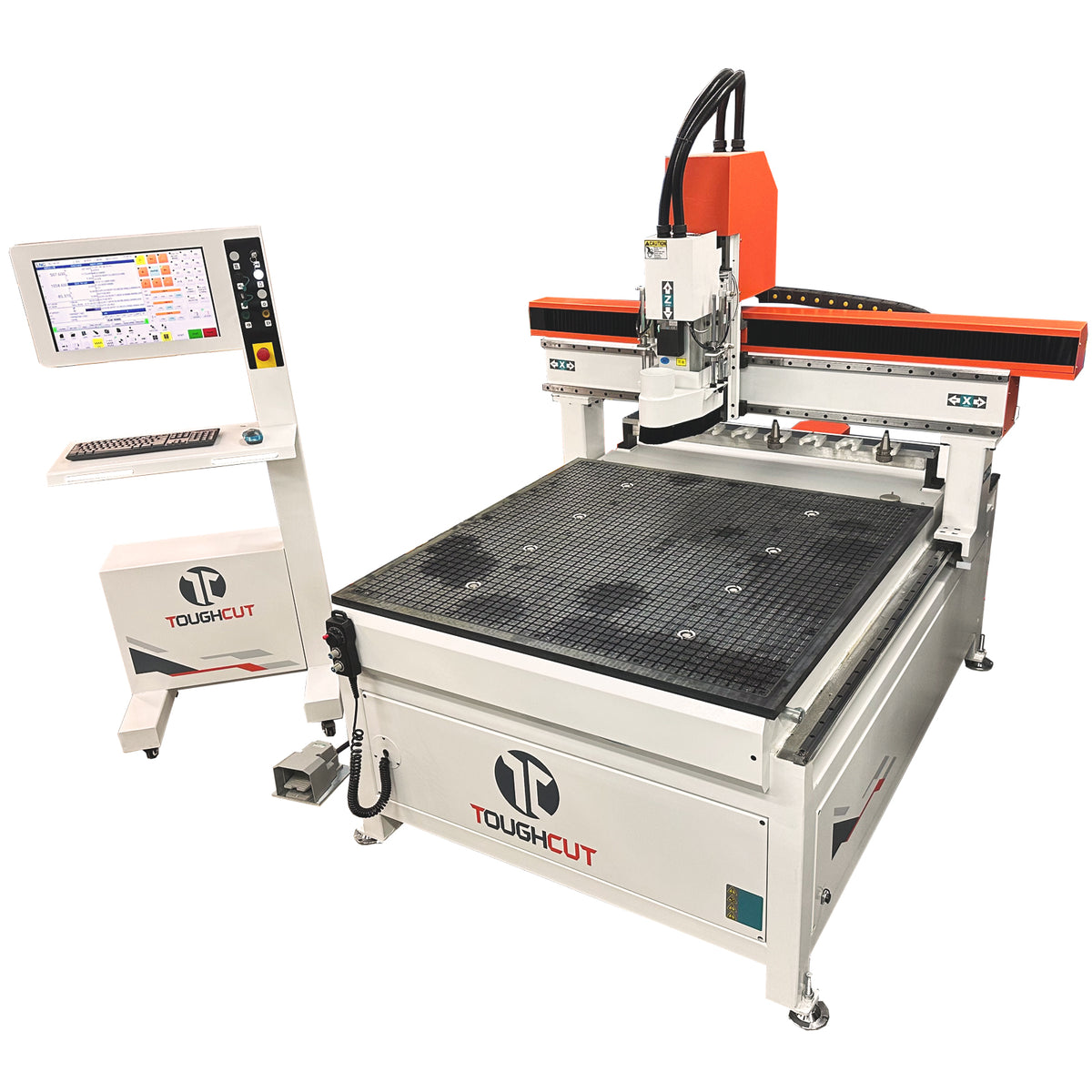

1200mm x 1200mm CNC Router with Auto Tool Change SAPPHIRE TCAKM1212C by Toughcut
Original price
$22,900.00
-
Original price
$22,900.00
Original price
$22,900.00
$22,900.00
-
$22,900.00
Current price
$22,900.00
Availability:
Special Order Item. Allow 30-60 business days before
collection or postage.
The Toughcut SAPPHIRE CNC Router is designed for the production of custom furniture, parts, and prototyping. The compact yet robust working center is suitable for hobbyists, craftspeople, schools, and small workshops.
Please note that this model does not include the vacuum table
Features:-
- OPERATION CONTROLLER | Mach3 Controller
- AUTO TOOL CHANGER | 4 Tool Changer with ISO30 for fast tool change and efficiency (no need for manual tool change).
- DRIVE MOTOR | Leadshine Servo Motor
- HELICAL GEAR & RACK TRANSMISSION | Good meshing performance, smooth transmission, and low noise reducing the load of each pair of gears and improving the bearing capacity of the gears.
- SPINDLE | 5.5kW ATC Spindle (water-cooled)
- ELECTRONICS | Leadshine Electronics
- GUIDE RAILS | HIWIN Guide Rails with sliding technology to easily drive the machine and ensure good bearing capacity.
- Automatic tool length calibration device.
- Manual Clamping table for holding the workpiece.
Applications:-
- Furniture & Wood Processing: wooden doors, chairs, cabinets, stairs, computer tables, sewing machine, musical instruments.
- Plate processing: insulation, plastic and chemical, the PCB, move the car body, bowing, track, stars anti-special board, epoxy, resin, ABS, PP, PE, and other carbon mixture.
- Decoration / Craft Industry: Engraving characters/patterns onto gifts, souvenirs, and shaping of acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper and aluminum, and other soft metal plate engraving and milling cutting.
- Advertising / Signage Industry: Engraving and cutting of various labels and signage on materials including marble, brass, steel, and other metallic material.
- Engraving: Engraving characters, numbers, and other patterns on labels for products directly.
- Architectural Models: Engraving fine window, fencing, and wall patterns.
Standard Inclusions:
- Windows-based Laptop for machine operating software only (Mach 3 - not for CAD software)
- Chiller unit for water-cooled Spindle
- 4 x ISO30 Tool holders - No Collets
- 4 x Manual Clamps for holding down the workpiece
Workshop Requirements:
- 15amp 240V socket outlet
- Compressed air supply, minimum FAD 200L/MIN - the machine is fitted with Nito Male Fitting
- Dust Extraction, Minimum 1,400CFM 100mm outlet
- Tooling, the machine is not supplied with tooling
- Collets for tool Holders - size Depends on the tooling
- CAD Software
- Bracket for holding dust hose
