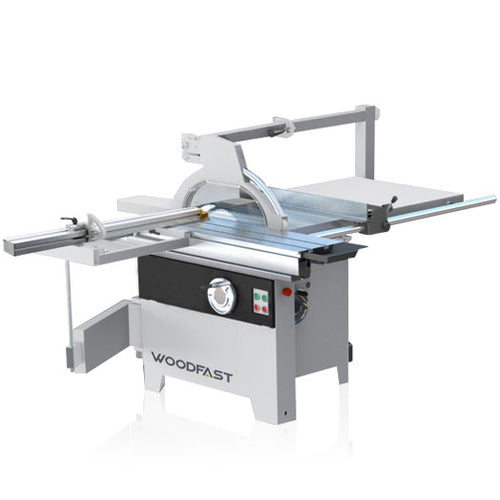

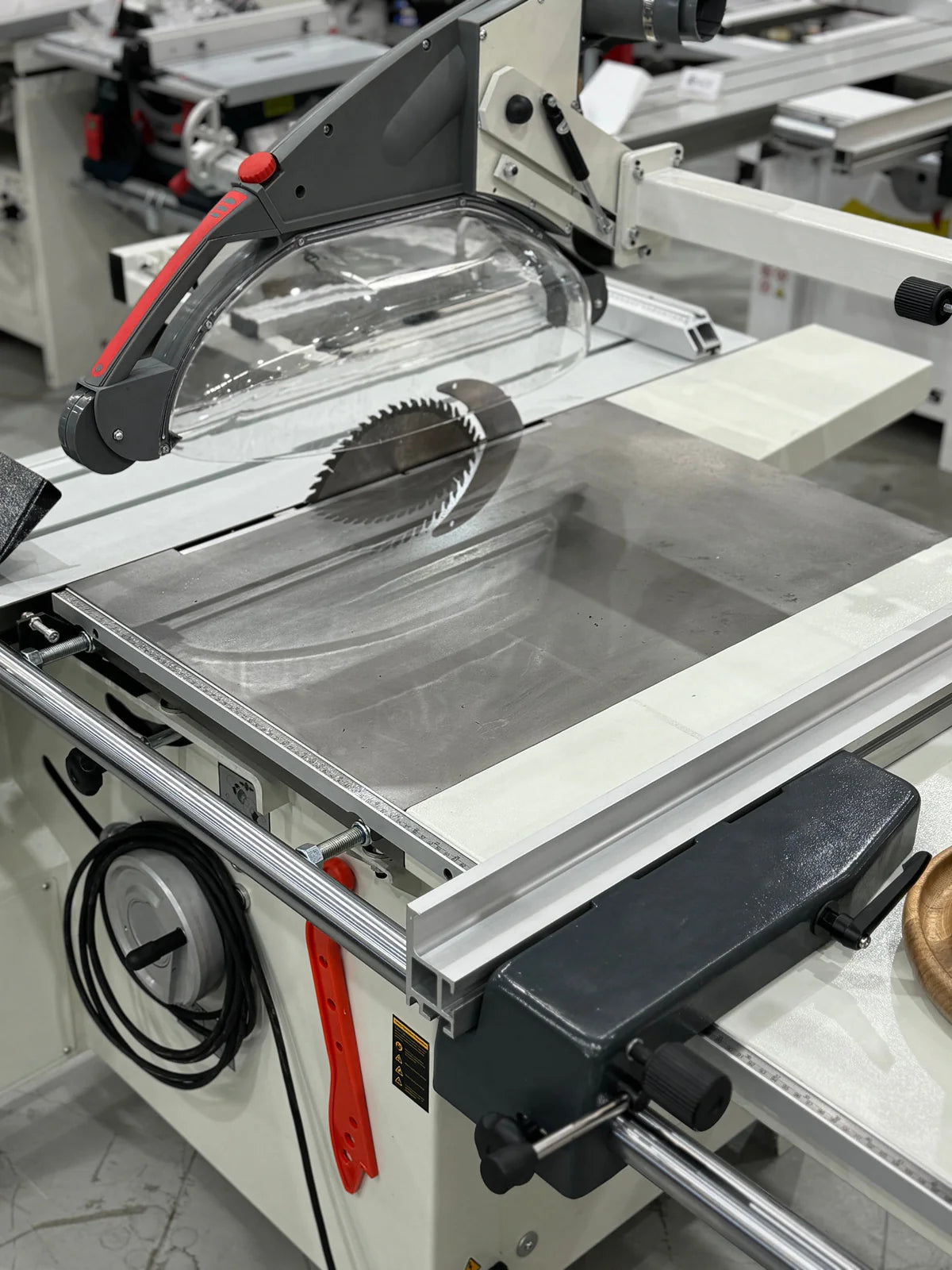

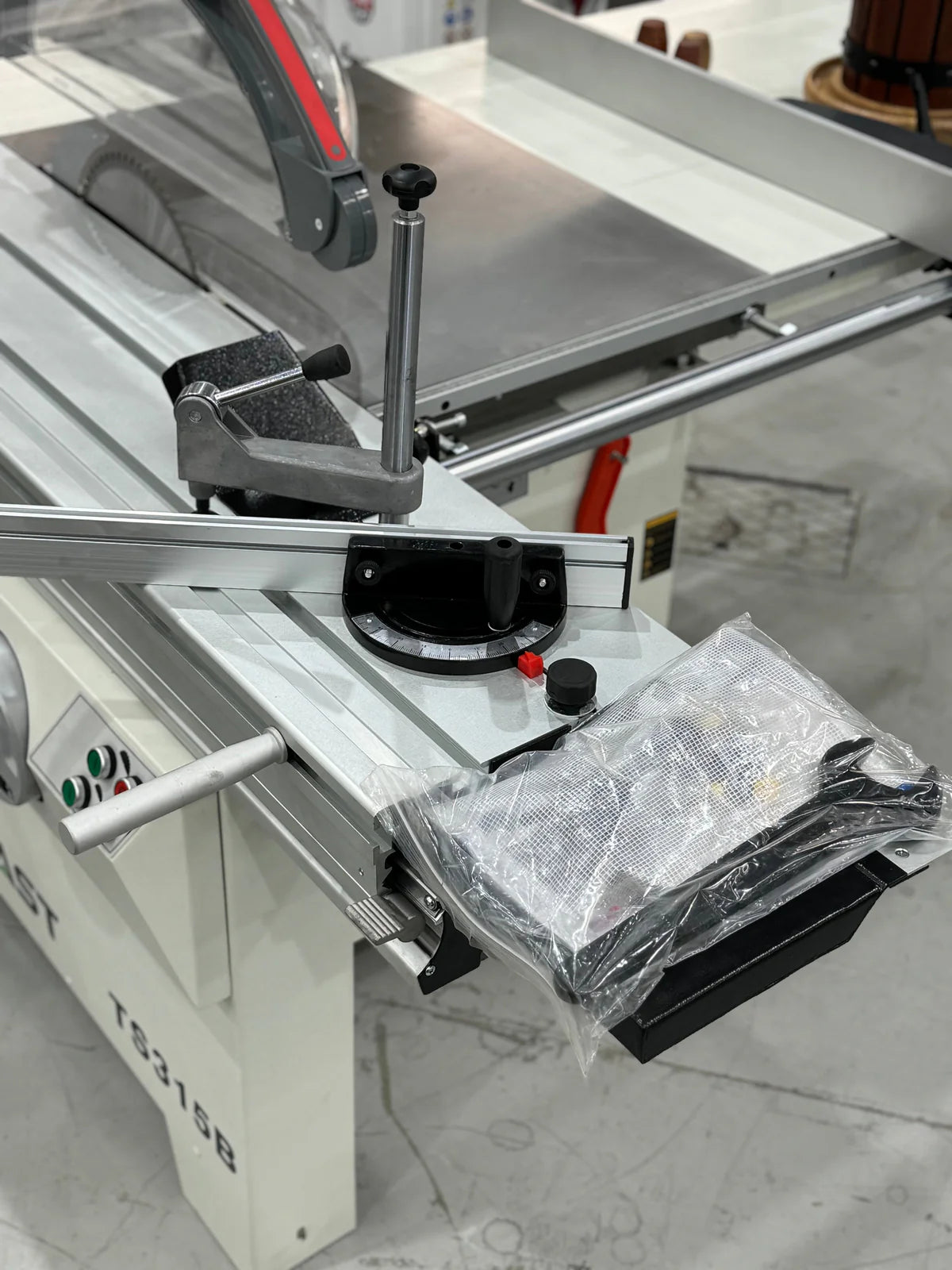

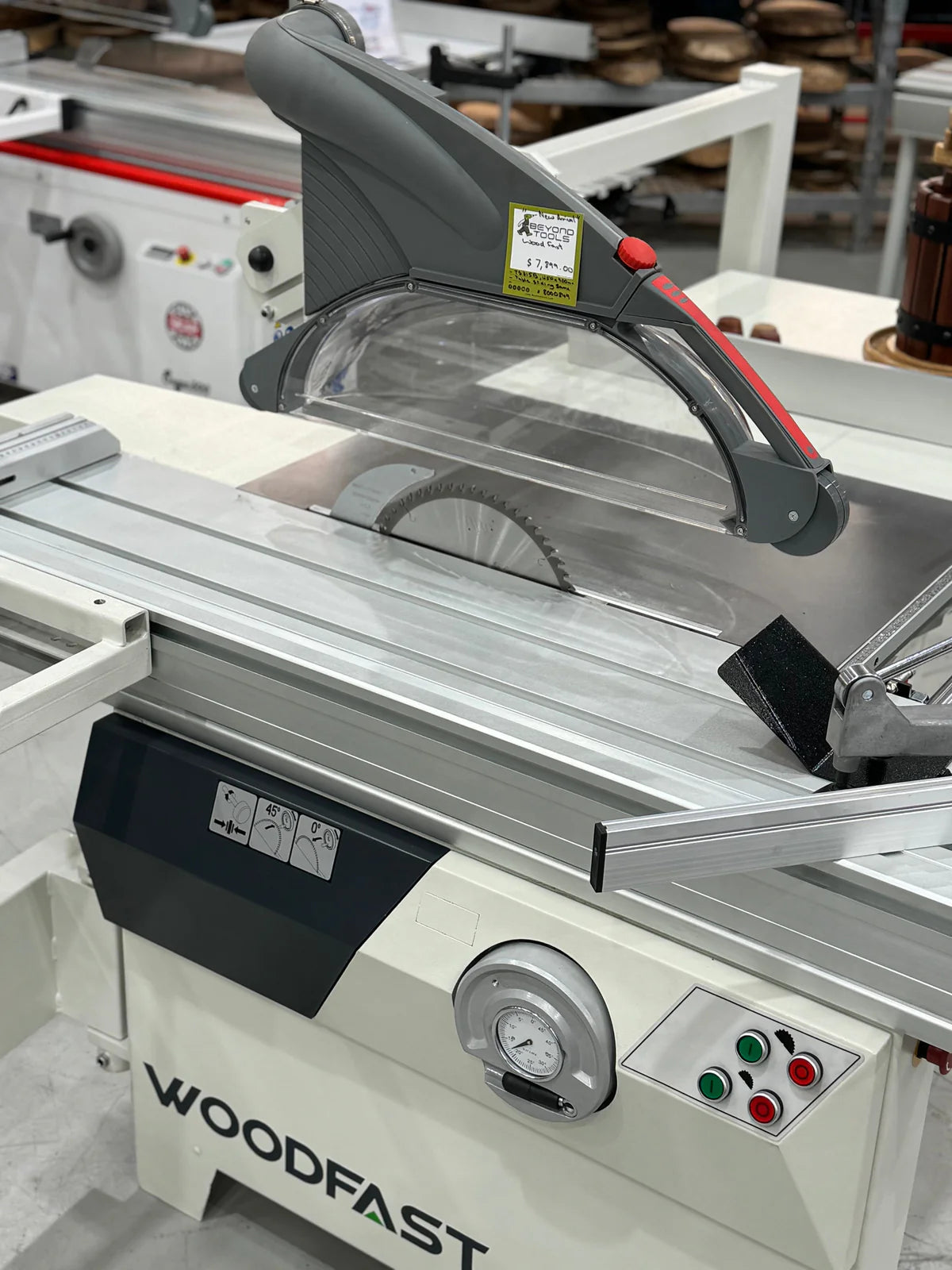

315mm (12") 3HP 1.6m Sliding Table Saw 240V TS315B

Original price $7,899.00 - Original price $7,899.00
Original price
$7,899.00
$7,899.00 - $7,899.00
Current price $7,899.00
Availability: Special Order Item. Allow 30-60 business days before collection or postage.

MADE TO ORDER - PLEASE CONTACT FOR ACCURATE MANUFACTURING TIMELINE PRIOR TO PURCHASE

315mm (12") 3HP 1.6m Sliding Table Saw 240V TS315B by Woodfast. It boasts a powerful motor and a long sliding table for precise, fast cuts. Enjoy the improved accuracy and speed—perfect for all types of woodworking projects.

Not every workshop needs a large panel saw dominating the workspace, but a compact, fully featured saws is a tempting alternative. The TS315B is just that, having a robustly constructed chassis in a heavy gauge steel and generous grey cast iron table with real panel saw trunnion, that gives stability and vibration free running.

Features

Cast iron saw unit provides extra support and stability for reduced vibration

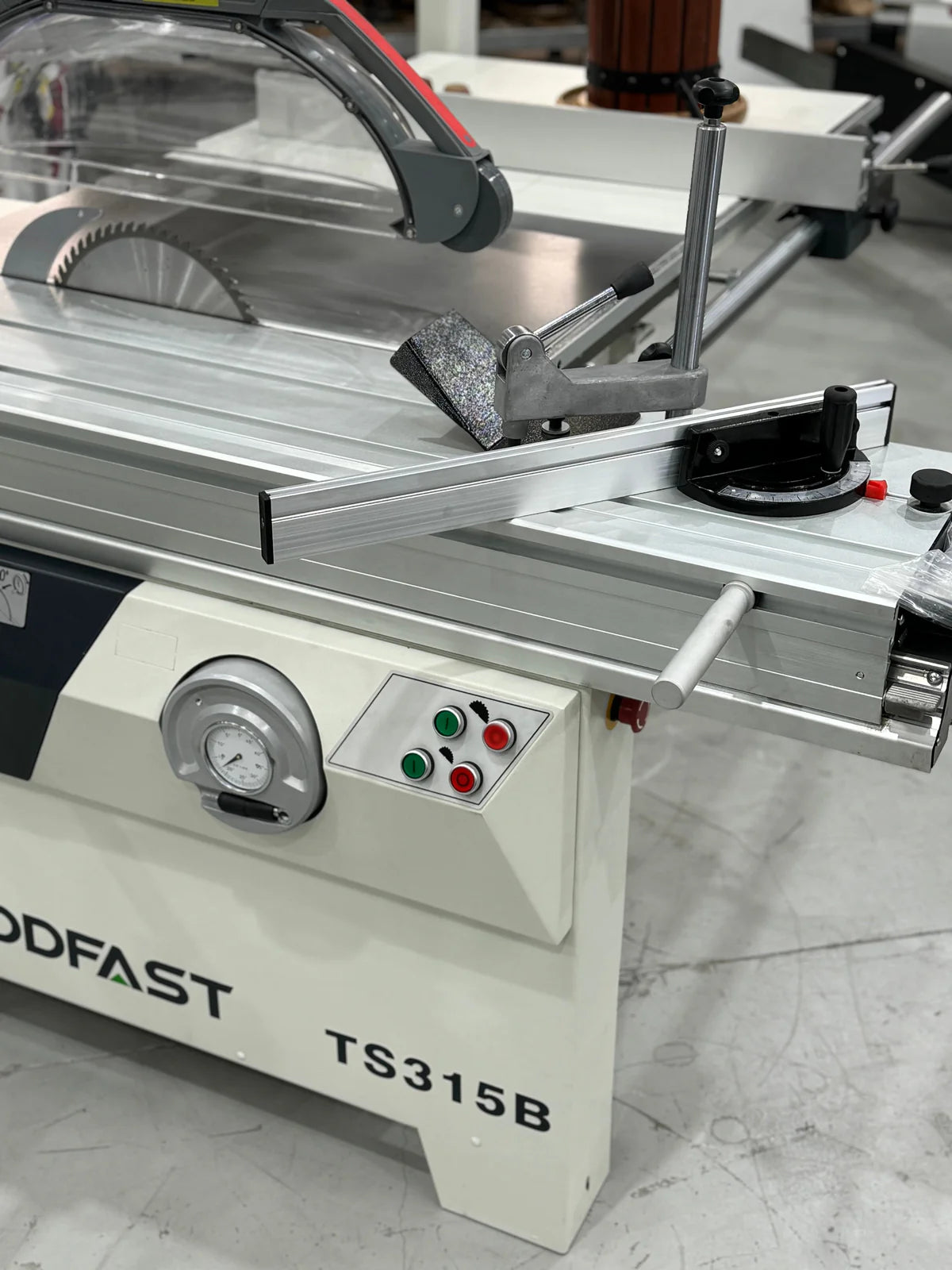

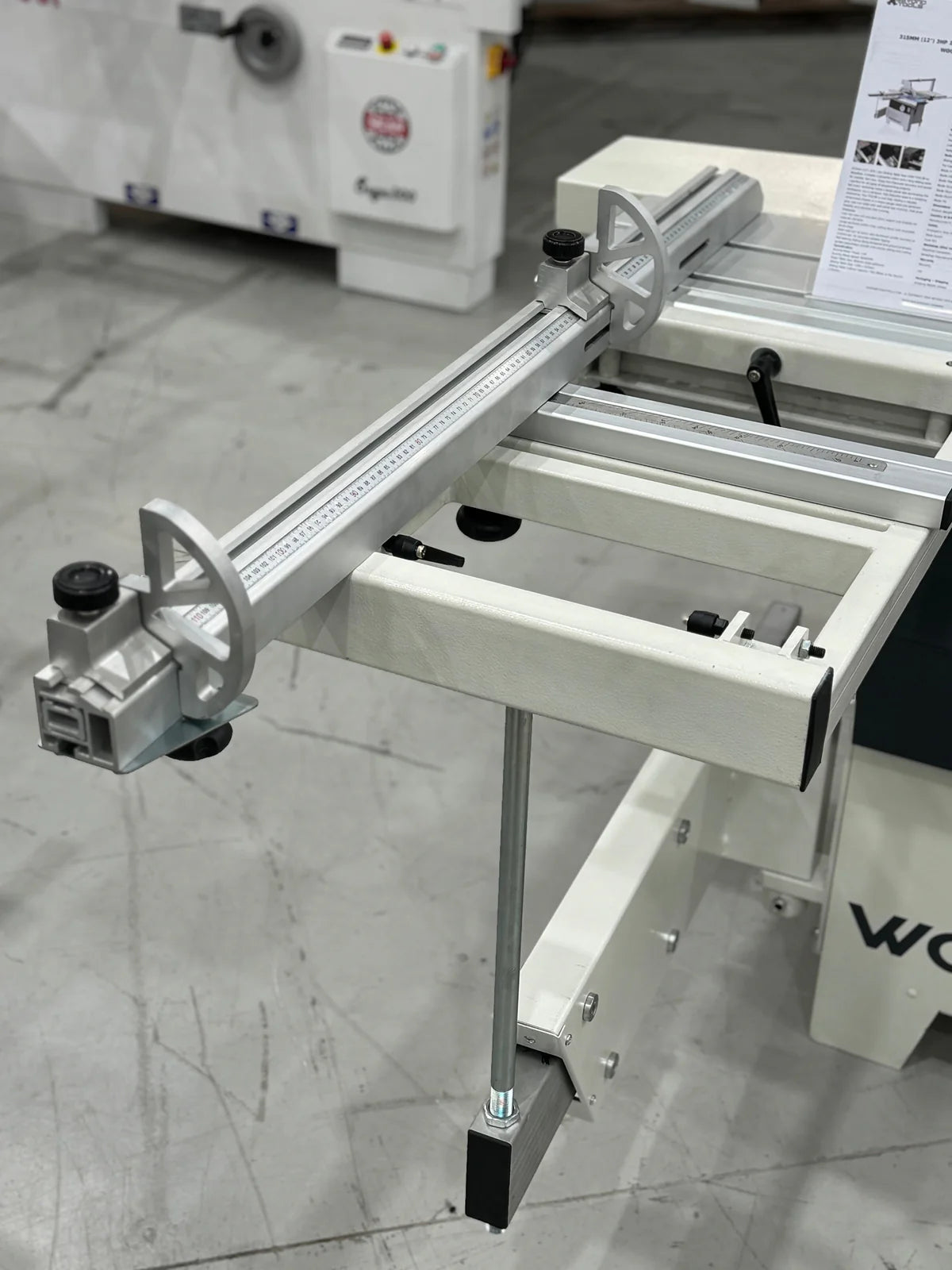

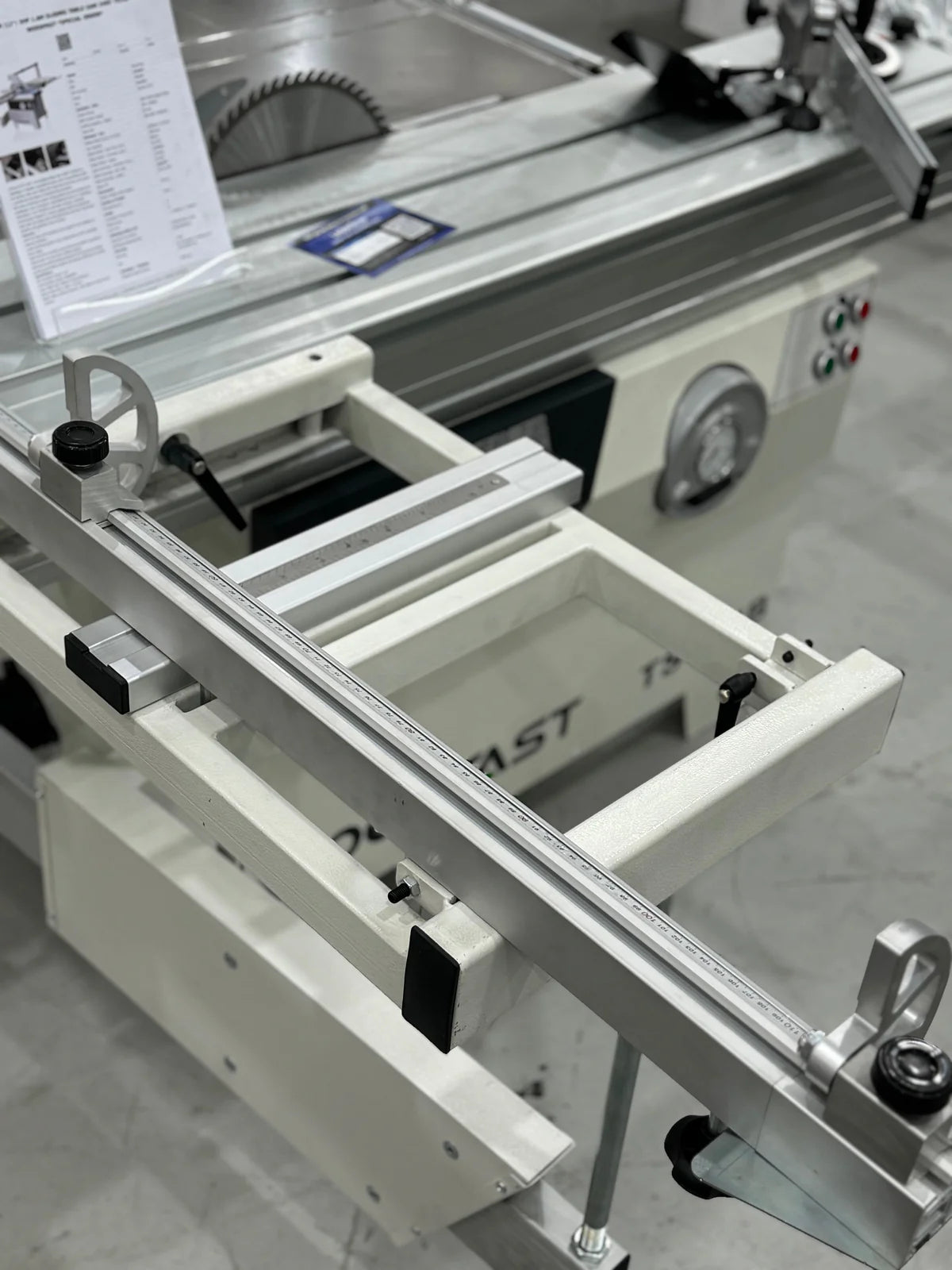

Large sectional profile cross cutting fence with reversible fence stops
Solid cast iron rip fence with aluminium profile mounted to 150mm bar, for accurate reliable ripping

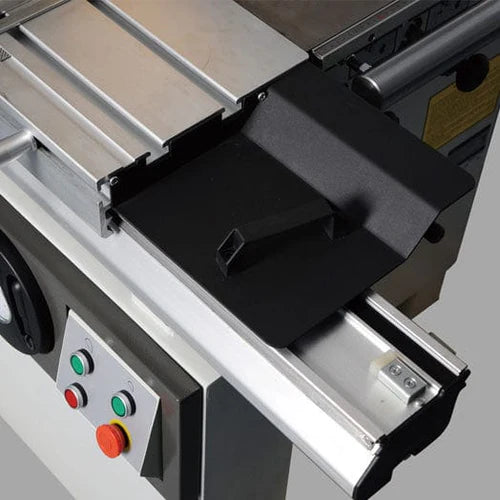

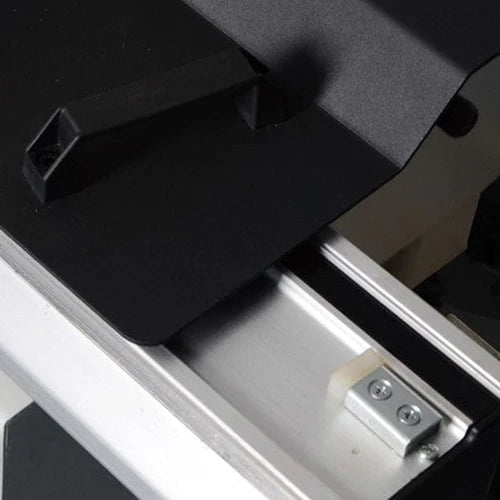

Ball bearing sliding along tempered and ground prismatic guides guarantees smooth and precise sliding and cutting.

Technical

Main Motor Power (Input) 3HP / 2200W
Scoring Motor Power (Input) 1HP
Blade (Main) - Diameter (Max.) 315 mm
Blade (Main) - Bore Size (mm) 30mm
Blade (Main) - Speed 4000RPM
Blade Tilt 0° to 45°
Blade (Scoring) - Diameter (Max.) 120 mm
Blade (Scoring) - Bore Size 20 mm
Blade (Scoring) - Speed 8000RPM
Cutting Capacity - 95mm at 90° / 67mm at 45°
Dust Port 1 x 100mm, 1 x 80mm
Power Source 240V 50Hz Single Phase 15 AMP PLUG
Table Size 800 (530+820)mm
Sliding Table Size 1200mm x 312mm
Sliding Table Cutting Capacity / Rip (Blade to Rip Fence): 1250mm
Warranty 1 Year
Use Not intended or designed for commercial use.

Packaging + Shipping

Packaging Wooden Box / Crate with Skid
Packaging Box Qty 2
Carton 1 (L X W X H x KG) 1310mm x 990mm x 1085mm
Carton 2 (L X W X H x KG) 2000mm x 430mm x 210mm
Shipping Weight (Gross) 495.0 kg

Delivery

We can send Australia wide!

Machines under 30kg & easily handled by a single person can usually be sent by courier (no PO Boxes or Parcel Lockers).

Machines weighing more than 30kg must be placed on a skid or pallet.
If a product is over 30kg you can:

- Pick it up from the closest courier depot.

- Pay a tailgate drop fee for delivery to door.

For a heavy item quote, please contact us below!
