410mm (16″) Variable Speed Scroll Saw OT-SS-410

Original price $299.00 - Original price $299.00
Original price $299.00
$299.00
$299.00 - $299.00
Current price $299.00
Availability: LOW STOCK

The OT-SS-410 Scroll Saw is a ‘Specialty Saw’ designed for small, delicate detail cutting. The saw is made of all-metal construction.

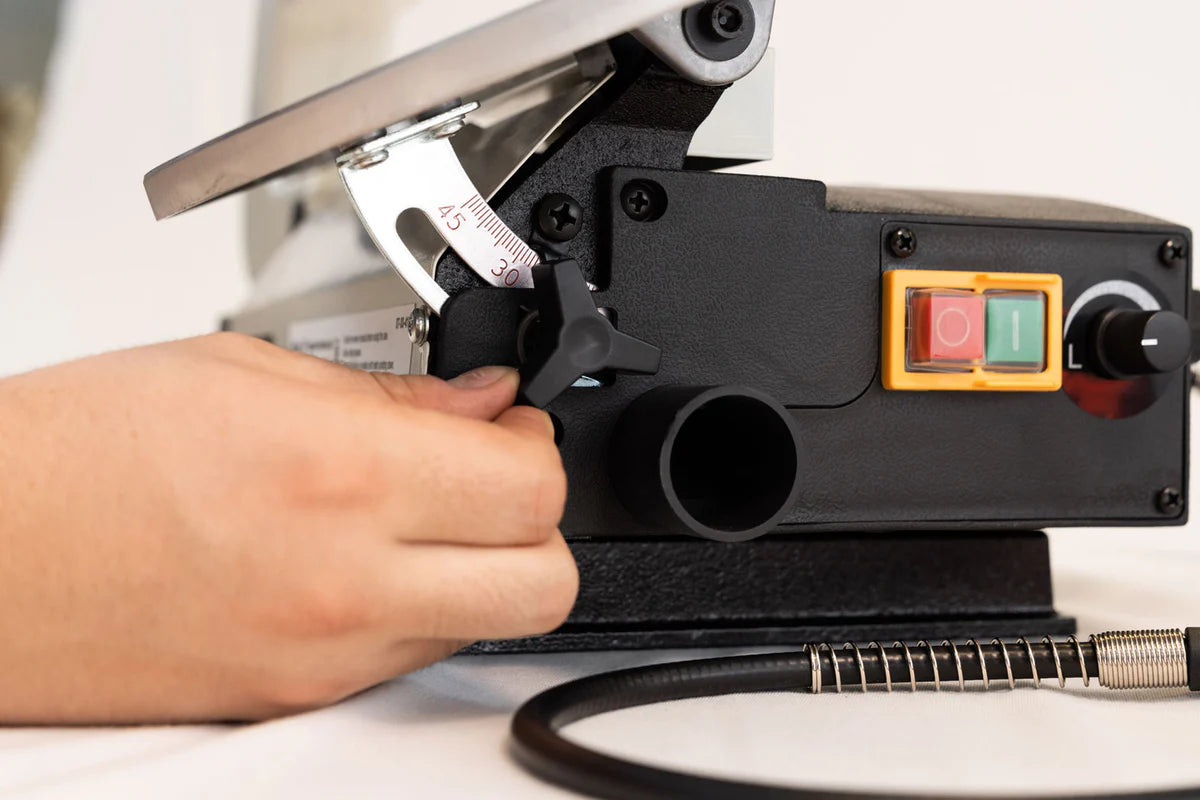

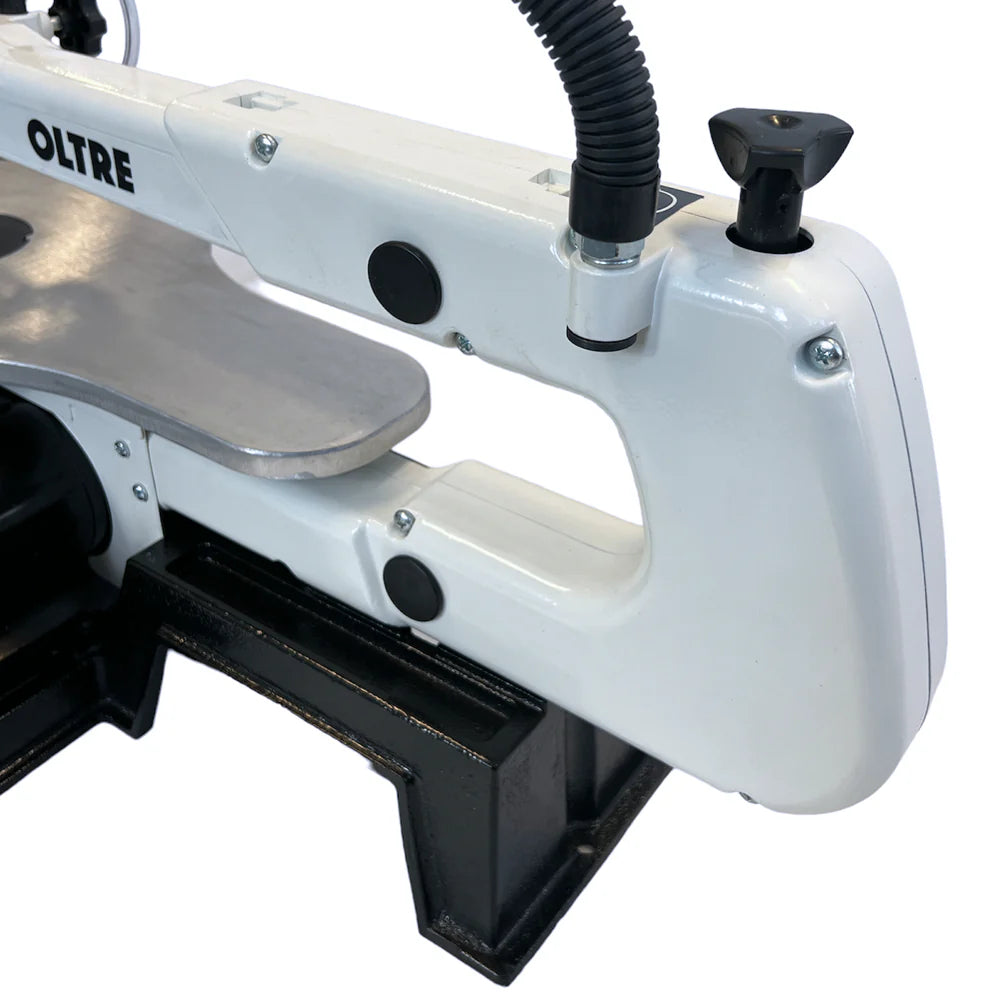

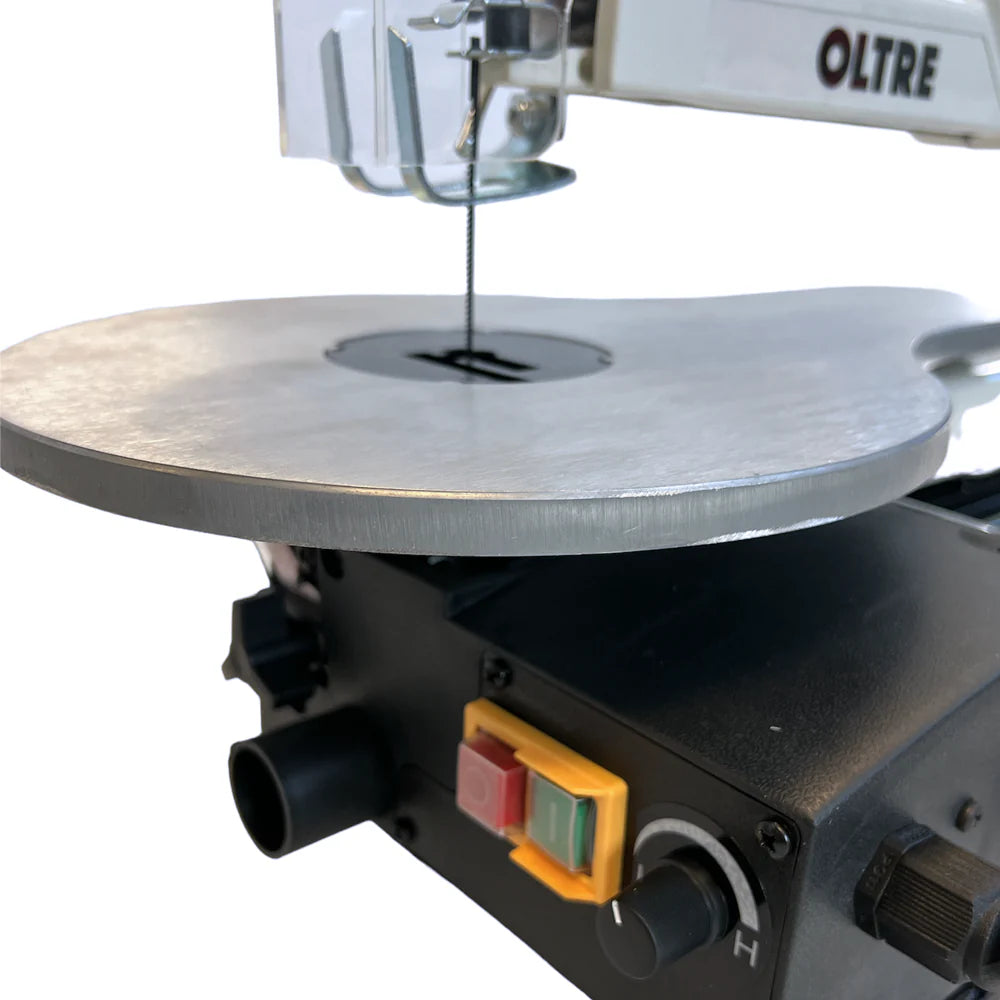

The 410mm Scroll Saw is designed for making small, intricate curved cuts in thinner woods that are used in making decorative scrollwork, puzzles, inlays, and craft items. The thin, working blade allows the material being cut to be freely turned in tight arcs, unlike any other power saw. The variable speed DC motor provides variable operating speeds, so adjusting the blade’s cutting action to different materials is easily done with just a twist of the dial. The saw’s 410mm (16”) throat and large machined aluminum table give extra access and stability when sawing large stock. Table also tilts to -45° for making angled cuts. The OLTRE OT-SS-410 machine uses 125mm (5”) long pinned or plain end blades. Includes cast iron base for greater stability, work light, pair of pin-less blade holders.

Features

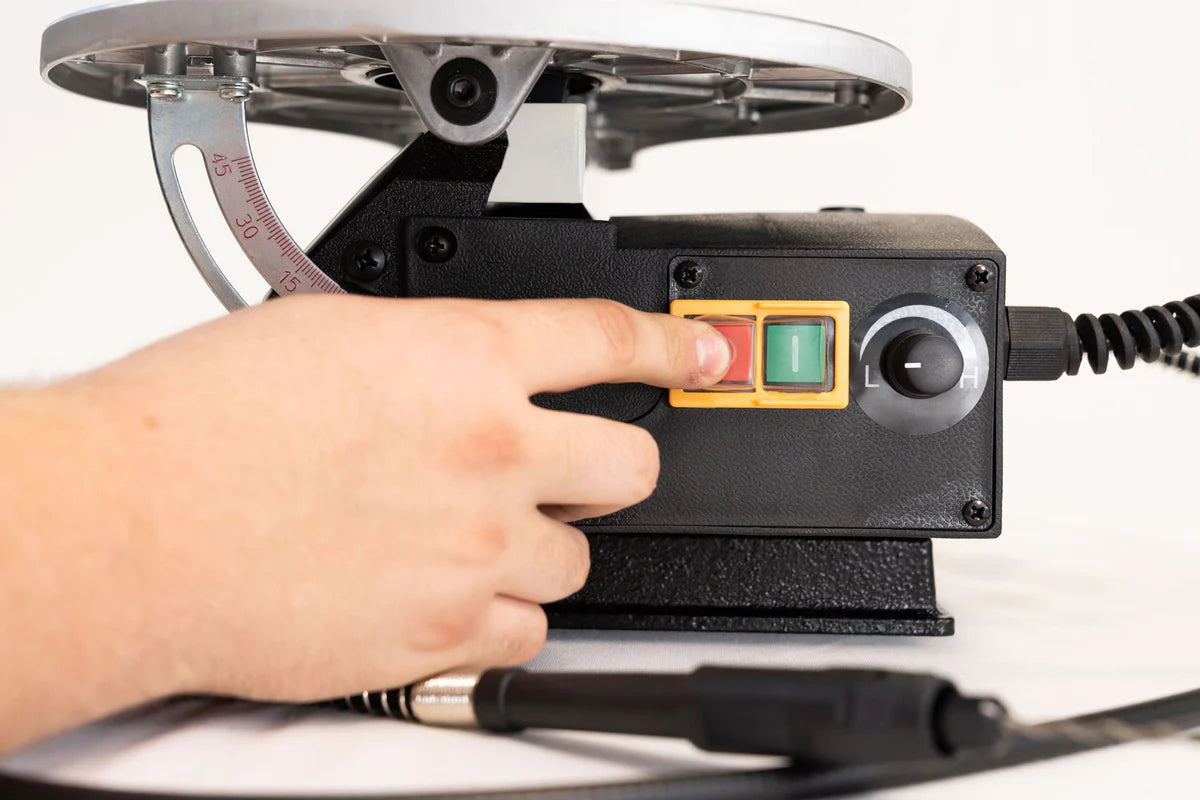

  • Variable Speed

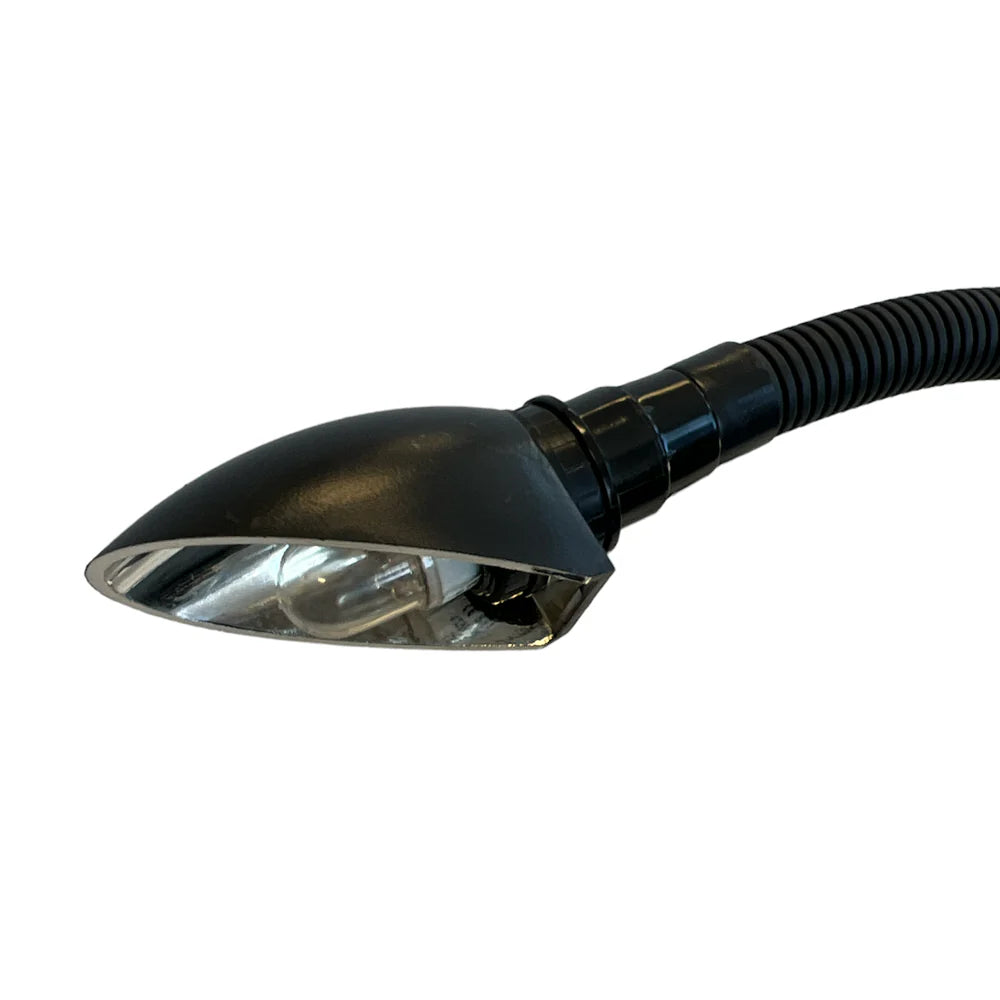

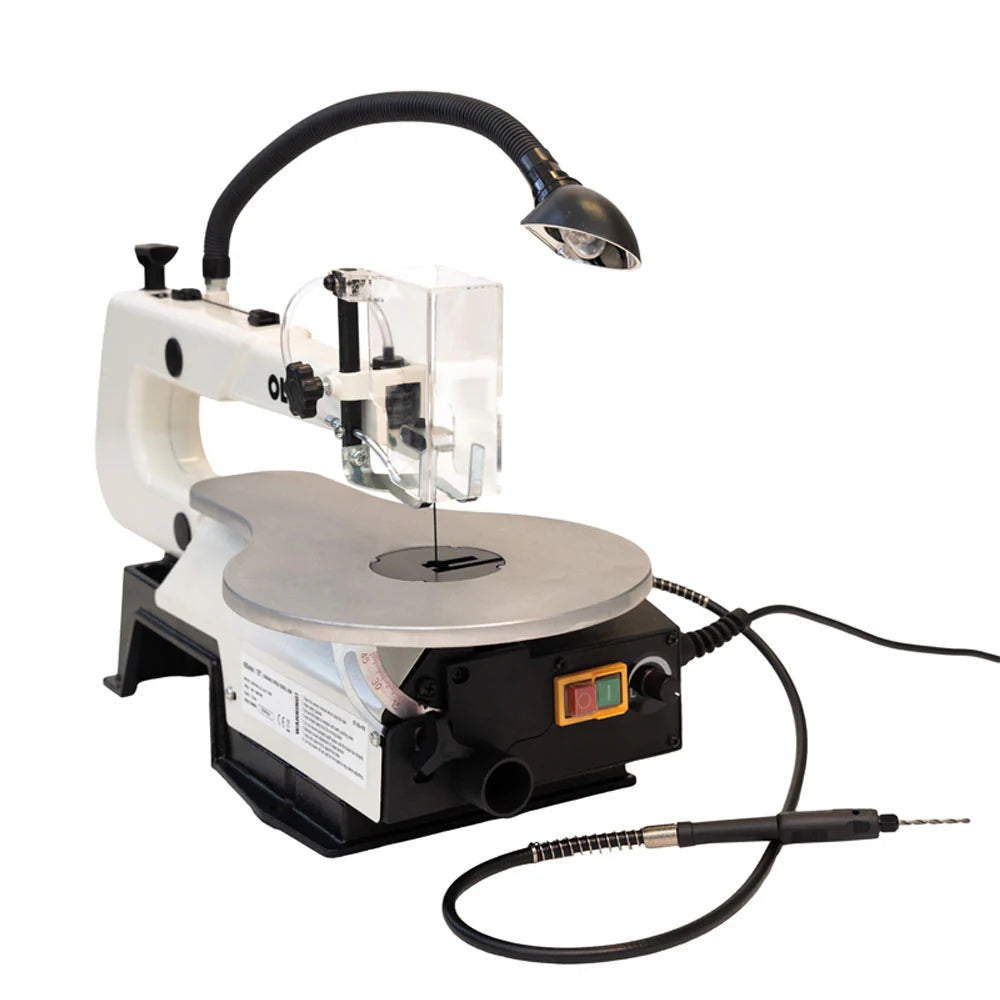

  • LED Flexible Gooseneck Work light
  • Cast Iron Base

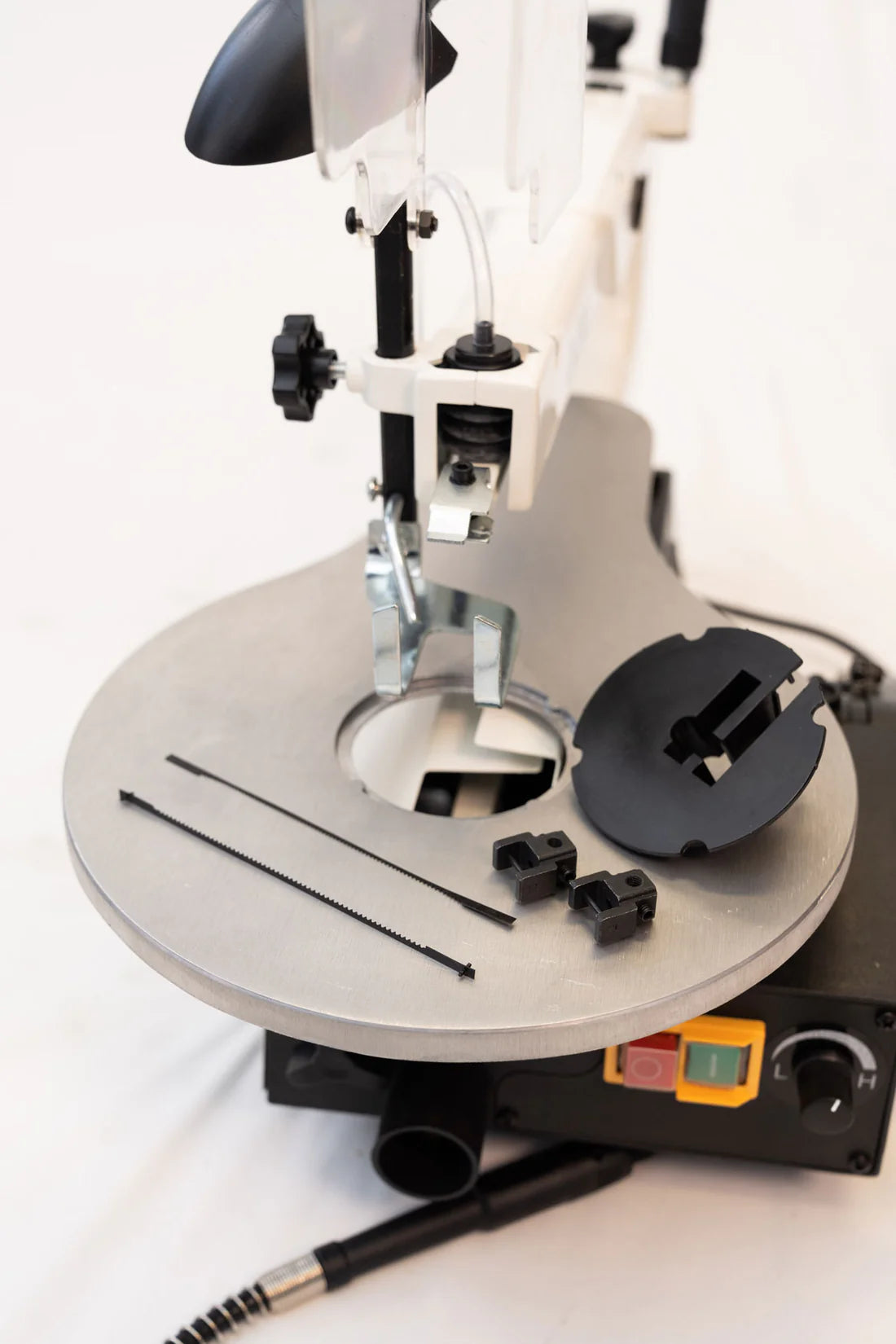

  • Large Aluminium Table
  • Pair of Pinless Blade Holders - Accepts both Plain and Pin Type Blades

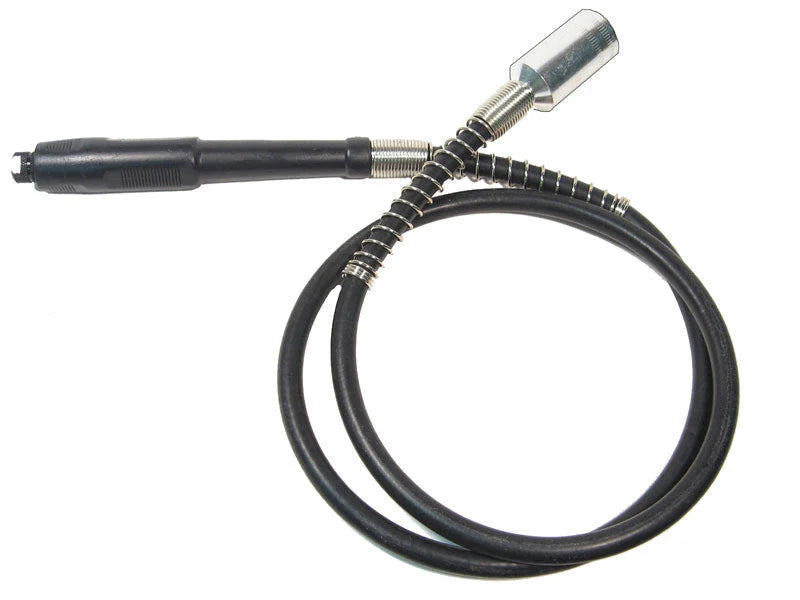

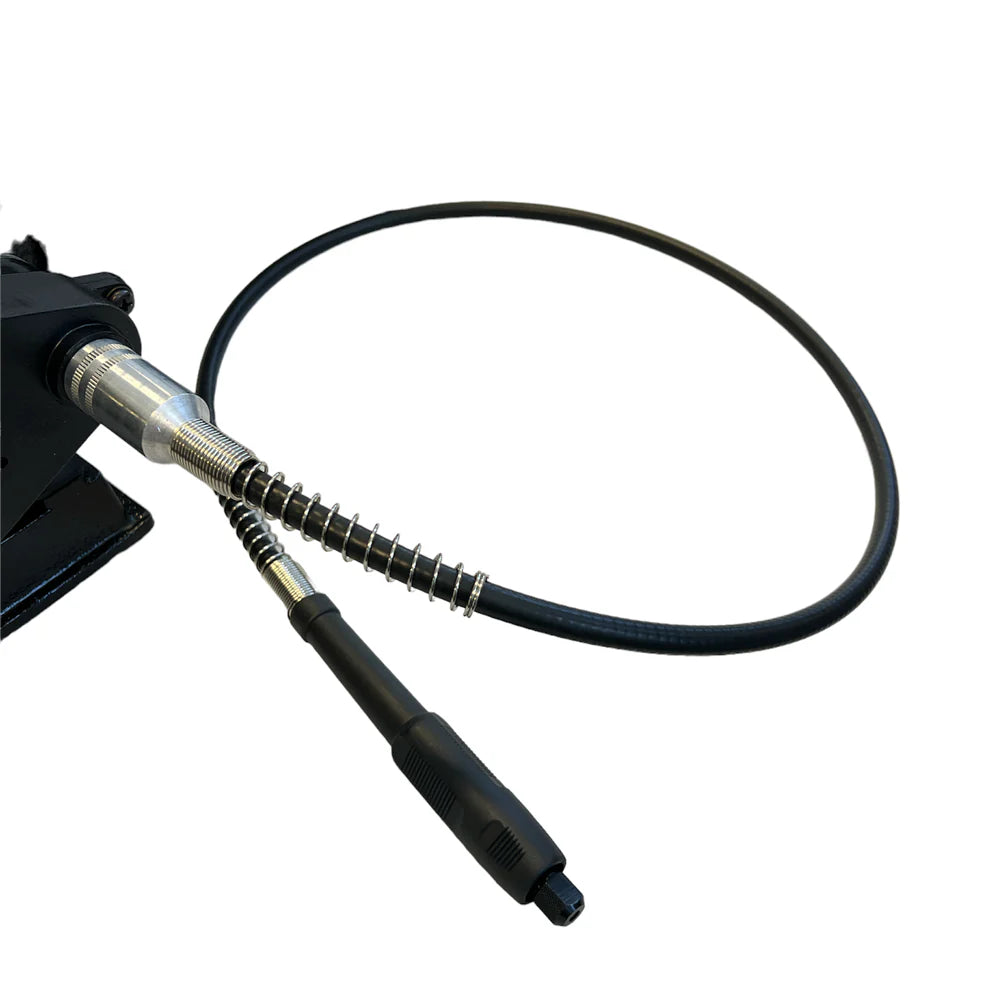

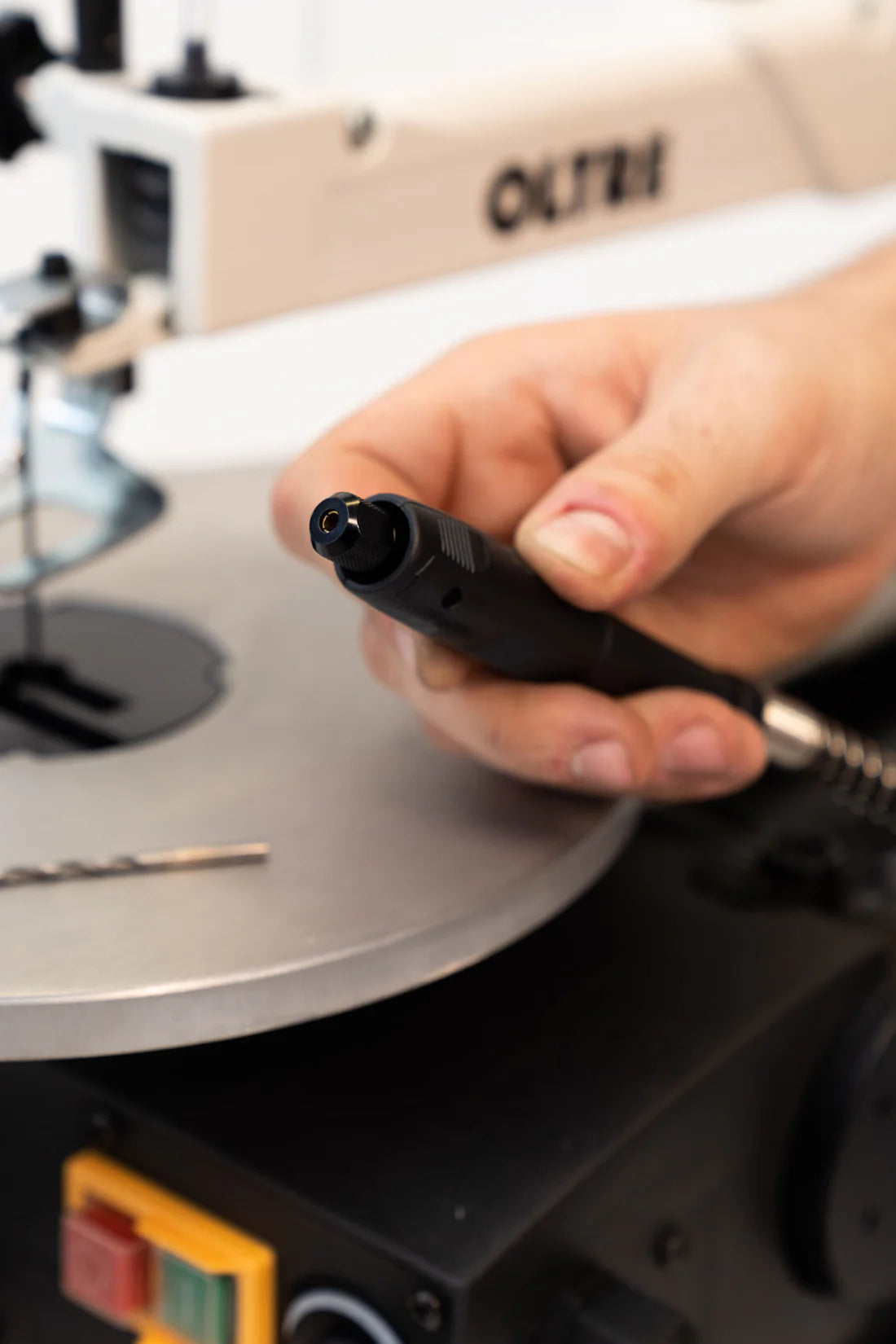

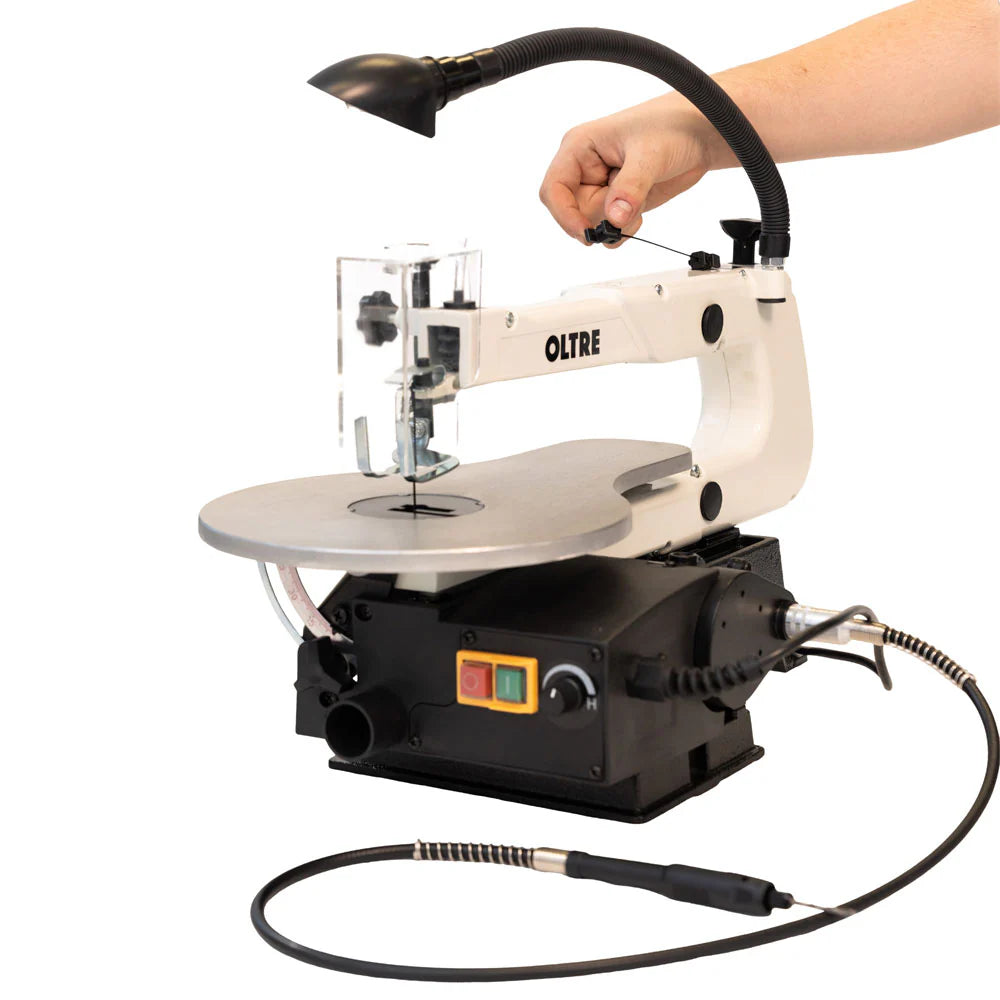

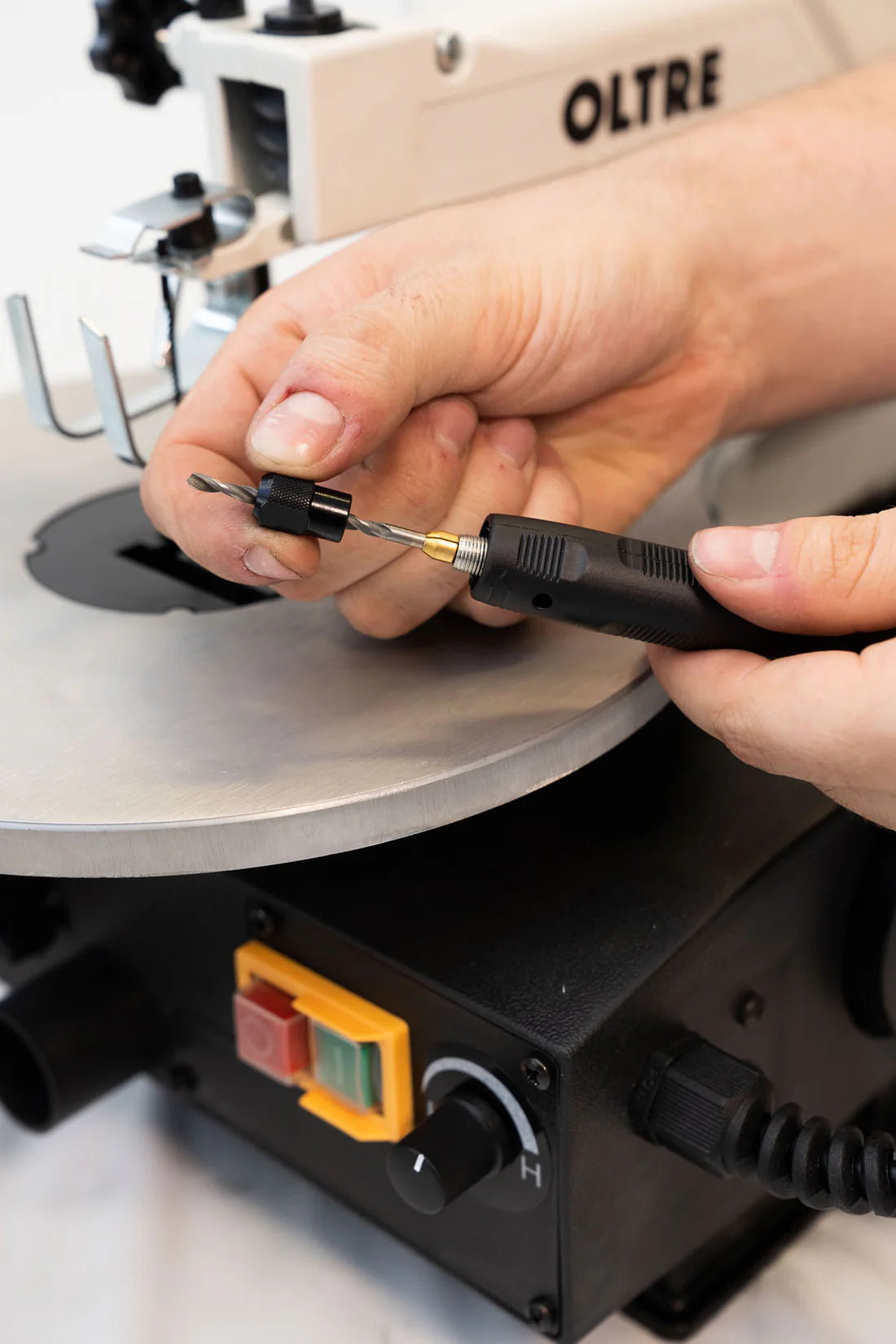

  • 10-9123 High Speed Flexible Shaft - attaches to the motor shaft for rotary work (pictured - included as standard with OT-SS-410)

Optional Accessories

Spare Parts / Consumables

  • P10-600VS-96 Pin-Less Blade Holder
  • P10-600VS-26 Replacement Bulb (10W)

Technical

Motor Power (Input)120W

Blade Type Pinless / Pin Type Blade (Dual Blade Feature)
Blade Length 127 mm
Cutting Capacity - Height  50 mm
D
ust Port 1 x 35mm
Power Source 240V 50Hz Single Phase
Table Size 254mm (Diameter) x 415mm
Stroke15 mm
Speed Range
550-1600SPM (Variable Speed)
Warranty 2 Years (Home User) or 1 Year (Commercial User)

Packaging + Shipping

Shipping Length 660 mm
Shipping Width 330 mm
Shipping Height 400 mm
Shipping Weight (Gross) 14.5 kg

Delivery

We can send Australia wide!

Machines under 30kg & easily handled by a single person can usually be sent by courier (no PO Boxes or Parcel Lockers).

Machines weighing more than 30kg must be placed on a skid or pallet.
If a product is over 30kg you can:

- Pick it up from the closest courier depot.

- Pay a tailgate drop fee for delivery to door.

For a heavy item quote, please contact us below!
