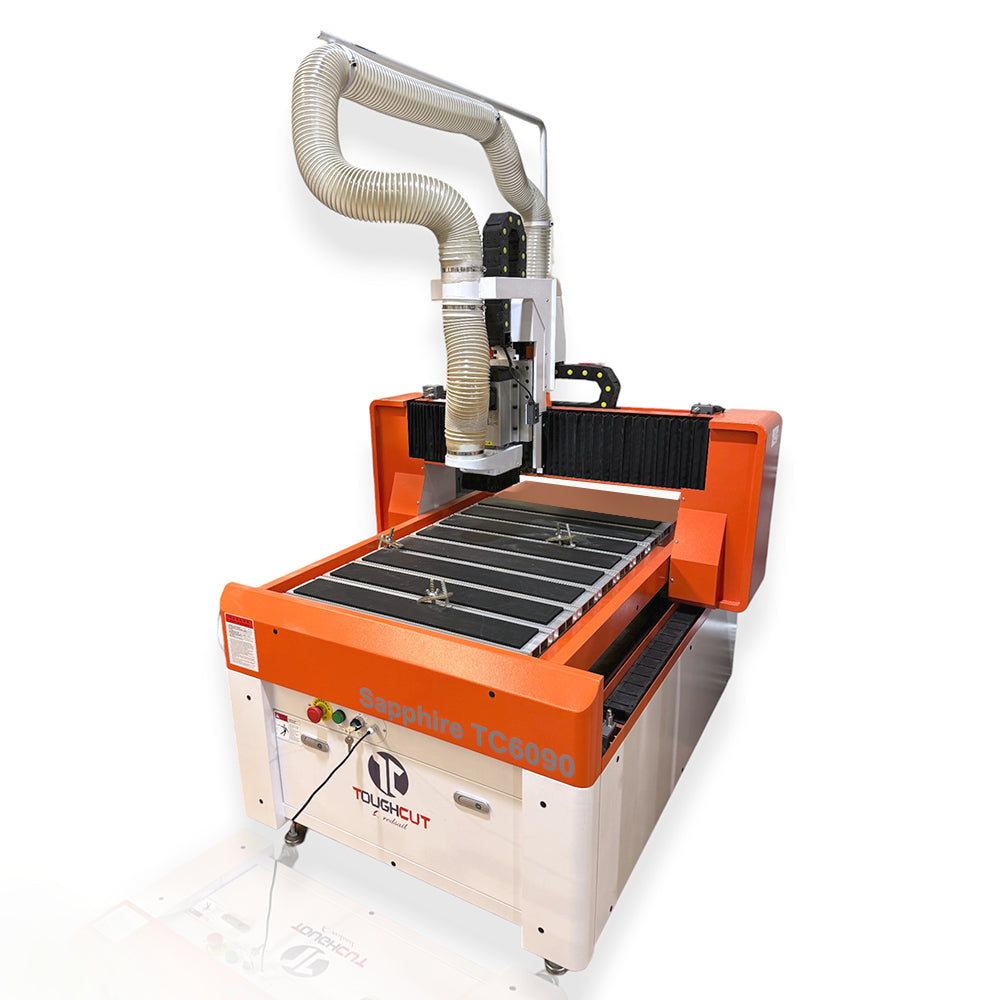

600mm x 900mm CNC Router SAPPHIRE TC6090 by Toughcut
This desktop CNC router is small and simple to use. Various materials can be cut and engraved by this machine, such as PVC, Acrylic, wood, PCB, even some soft metals like aluminium and copper can be engraved. The machines are equipped with MACH3 Software and Driver allowing for easier control of the machine. Also, this machine can achieve excellent performance and high resolution carving due to ball and screw drive.
Features
- The machine bed is aluminium, rigid, solid, and stable
- High precision
- Equipped with wheels for mobility
- Ball screw and linear guide rail, ensure stable and accurate operation
- Can use most types of CADCAM software, e.g. Artcam Express
- Auto tool measuring device
- 2.2kw (3HP) Air Cooled Spindle
Specifications
-
Power Source: 230-240V 50Hz Single Phase
- Worktable Size: 600 x 900mm
- Max. Moving Speed: 7m/min
- Max. Machining Speed: 4m/min
- Machine Precision: 0.02mm
- Repeatiblity: 0.01mm
- Accuracy: 0.02mm
- Gantry Height: 150mm
- Drive Type: Stepper Motor
- Spindle: 3HP/2.2kW (air cooled)
- Mount/Collets: ER20
- No. of Tool Changers: 1
- Spindle Speed: Variable 0 – 24,000RPM
- Safety: Emergency Stop Switch
-
CE Certified
Comparable Products
- RS6090 CNC Router by Redsail
Dimensions
Standard Inclusions
2 x Cutters
100mm Hose suitable for Extraction (approx. 5m)
6 x Workpiece Clamps
Machine Operating Hardware: Windows-based laptop with MACH3 software installed for machine control (* laptop not for CAD designing use)
Workshop Requirements
User Computer / Laptop: (To draw and design)
CAD CAM Software: Required (To draw and design)
Odour & Fume Extractor: Highly Recommended
Safety Wear: Safety Glasses
Cutters / Tooling - Various sizes depending on client requirements
Warranty
Delivery
We can send Australia wide!
Machines under 30kg & easily handled by a single person can usually be sent by courier (no PO Boxes or Parcel Lockers).
Machines weighing more than 30kg must be placed on a skid or pallet.
If a product is over 30kg you can:
- Pick it up from the closest courier depot.
- Pay a tailgate drop fee for delivery to door.
For a heavy item quote, please contact us below!
