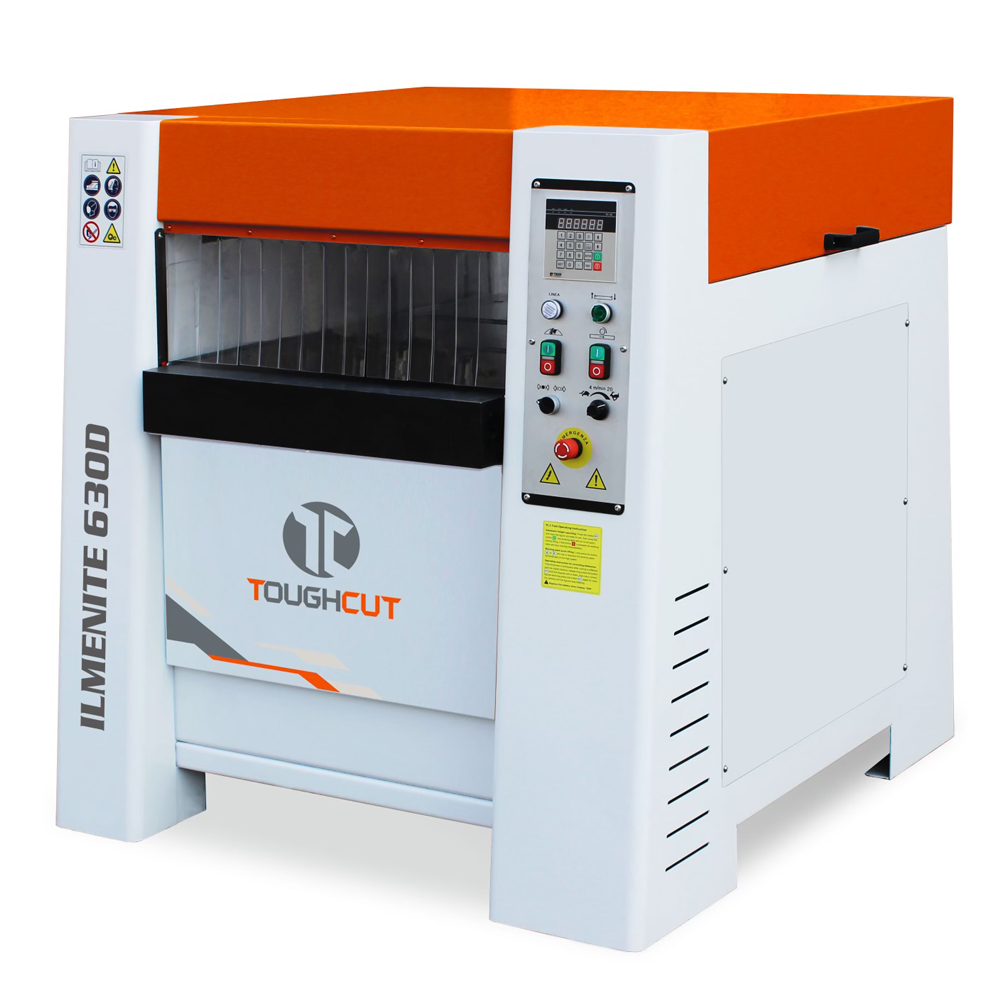

630mm (25") Industrial Thicknesser Ilmenite 630D by Toughcut

Original price $18,999.00 - Original price $18,999.00
Original price
$18,999.00 - $18,999.00
Current price $18,999.00
Availability: Special Order Item. Allow 5-14 business days before collection or postage.

Ilmenite 530D and 630D series are an upgraded model to the 530H and 630H series Thicknessers. These industrial machines are suitable for industrial applications and feature variable feed speed, electronic braking, digital height control and spiral cutter head with 4 sided cutting knives. The very high work capacity from 5mm to 300mm allows optimum machine use and offers flexibility for wood machining.


  • Cast iron table mounted on 4 heavy columns for excellent support and accuracy without any locking required
  • Spiral Head Cutter Block (126 Blades (530D) / 150 Blades (630D))
  • Variable speed infeed by inverter to suit all types of finishes
  • Motor drive table lifting mechanism with micrometric positioning
  • Spring-loaded pressure bars and double outfeed roller design prevents vibration of very thin workpieces during thicknessing
  • Sectioned Feeding Roller
  • Four trapezoidal thread spindles with dual guide rails guarantee accurate adjustment and avoid lateral movement during thicknessing
  • Two bottom table rollers
  • Electronic motor breaking
  • Electronic positioner to enable high precision and help reduce positioning time to increase efficiency
  • Sound insulation underside of the lid
  • Matting protection on top of the lid to allow material to be pasted over the machine without causing damage to the workpiece
  • Variable Speed
  • Digital Speed Display
  • CE Certified


Motor Power (Input) 7.5HP / 5.5KW - Variable Option
Air Delivery Minimal Rate of 1800m3/H Required at a speed of 25-30m/Sec
Blade Type Spiral Head Cutter Block
Blade - Cutter Head Block - Diameter 120 mm
Blade- Cutter Head Block - Blade Size 15mm x 15mm x 2.5mm Square 30Degree
Blade - Cutter Head Block - Rows 6
Cutting Capacity - Height 300 mm
Dust Port 160mm
No. of Blades / Tips 150
Power Source 415V 50Hz Three Phase

Workshop (Site) Info / Requirements

Air Delivery Minimal Rate of 1800m3/H Required at a speed of 25-30m/Sec
Electrical Connection Excludes Plug & Lead (must be connected / installed by Licensed Electrician)
Other Requirements160mm Diameter Dust Hose + Dust Collector with Minimal Rate of Delivery as Spec.
Warranty 1 Year
Use Intended or designed for commercial use.

Packaging + Shipping

Shipping Length 1160 mm
Shipping Width 1220 mm
Shipping Height 1310 mm
Shipping Weight (Gross) 870.0 kg
Packaging Wooden Box / Crate with Skid


We can send Australia wide!

Machines under 30kg & easily handled by a single person can usually be sent by courier (no PO Boxes or Parcel Lockers).

Machines weighing more than 30kg must be placed on a skid or pallet.
If a product is over 30kg you can:

- Pick it up from the closest courier depot.

- Pay a tailgate drop fee for delivery to door.

For a heavy item quote, please contact us below!
