Wagner Orion 950 Smart Pinless Wood Moisture Meter with EMC Calculator Temperature RH Sensor

Save 14% Save 14%
Original price $983.00
Original price $983.00 - Original price $983.00
Original price $983.00
Current price $850.00
$850.00 - $850.00
Current price $850.00
Availability: LOW STOCK

  • Bluetooth App Enabled
  • Temperature and Humidity Sensor
  • Dew Point Calculations
  • Equilibrium Moisture Content
  • Grains Per Pound/Kilogram Mode
  • Data Collection
  • Dual Depth Measurements
  • IntelliSense Technology
  • Fast Selection Species Settings
  • Non-Damaging Pinless Sensor
  • Virtually Unaffected by Temperature
  • On-Site Calibration
  • Relative Moisture Measurement Mode
  • Press to Hold Readings
  • Programmable Alarm
  • 7-year Warranty
  • Ruggedized Protective Rubber Boot and Hard Case

The Orion line of wood moisture meters continues Wagner's 50-plus year tradition of providing accurate, dependable non-damaging pinless moisture measurement technology, measure IN the wood not just ON the wood, backed by Wagner's industry-leading 7-year warranty.

The Orion 950 Smart Moisture Meter is the pinnacle achievement of the Orion line. Designed for professional wood flooring installers/inspectors, quality control managers as well as restoration professionals, who need superior accuracy, versatility, data collection, compatibility, and ruggedness in their critical moisture measurement instruments.

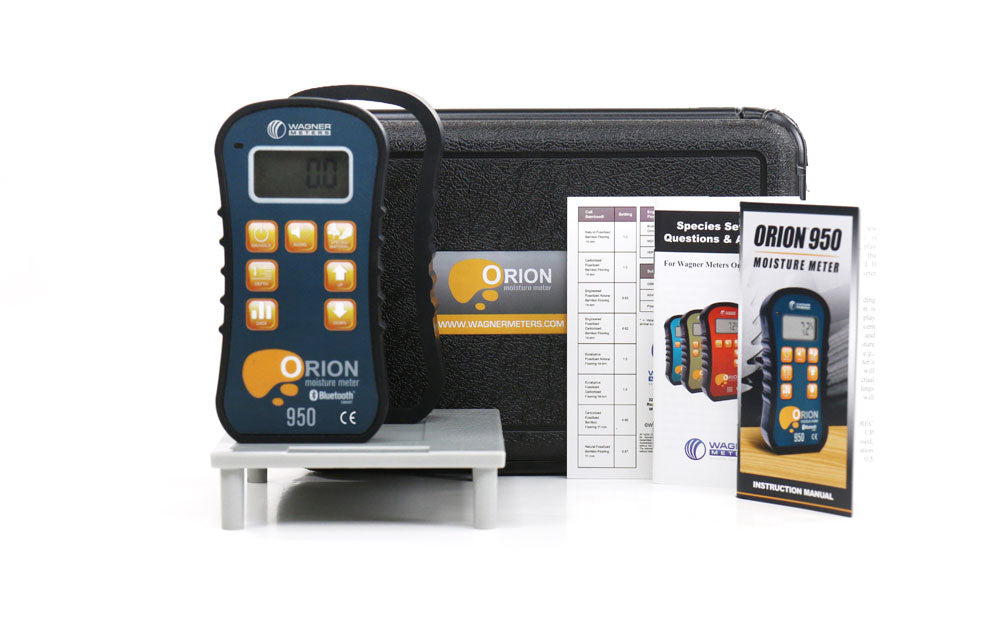

Each Orion 950 Smart Pinless Wood Moisture Meter with Temperature/RH comes with the following:

  • 1x Orion 950 Smart Pinless Wood Moisture Meter with built-in temperature/RH sensor
  • 1x Paired On-Demand Calibrator
  • 1x Rubber Protective Boot
  • 1x Foam-lined ABS Plastic Carrying Case
  • 1x 9V Battery

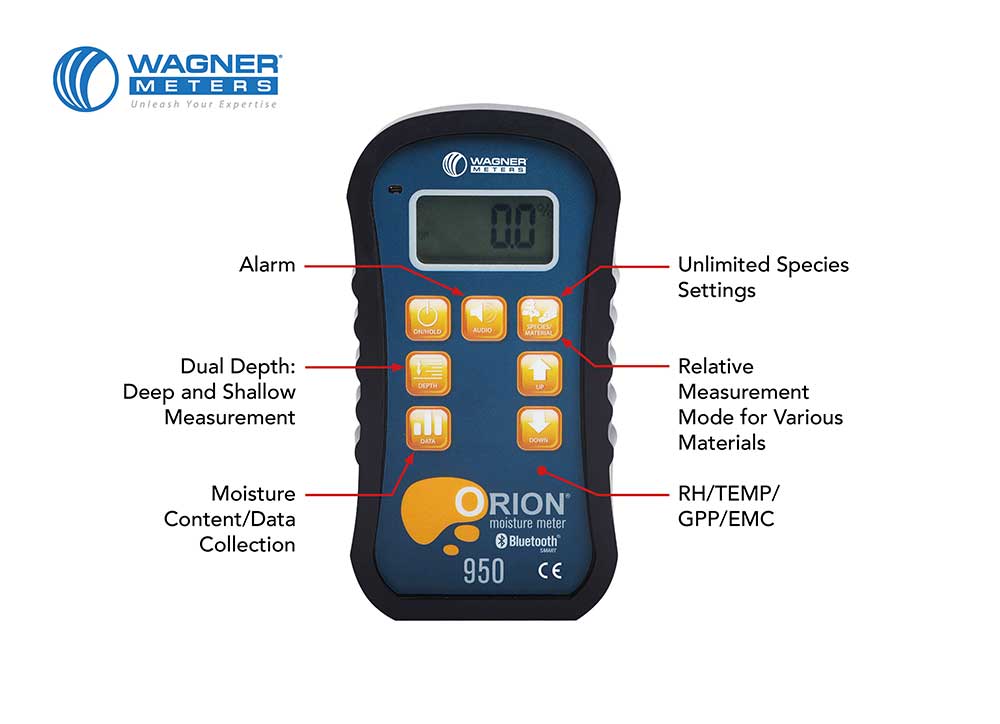

More Orion 950 Moisture Meter Features:

Data Collection
The Orion 950 can collect data in two modes, either manual or automatic with viewable moisture stats. The Orion 950 can hold data storage of up to 100 readings and includes high-low-average analysis.

Dual Depth Measurements
The Orion 950 Data Collection Pinless Moisture Meter combines the Deep and Shallow readings of the 910 and 920 into one Dual Depth mode. This mode provides readings at 1/4" and 3/4" depth modes to measure the moisture content of thin samples such as wood floors or deeper into thick wood samples to find moisture further into the wood. In 1/4" mode the meter will read the moisture content from the surface level down to .25" (6mm). In 3/4" mode the meter's IntelliSense technology will be activated and the meter will begin to disregard surface moisture and read deeper moisture content from .75" up to 1/5" (38mm).

IntelliSense Technology
The Orion 950 pinless wood moisture meter incorporates IntelliSense technology in its 3/4" deep reading mode. This enables accurate determination of the moisture content deeper in the wood while minimizing the effect that surface moisture will have on the meter readings. Pin-type meters may be able to bypass the surface conditions, but they also damage the surface of the wood every time you take a reading. Air humidity, condensation, or other ambient conditions can impact many moisture meters and give inaccurate readings that cost you money.

Fast Selection Species Settings
With simple up/down arrow buttons, your Orion meter can be easily and quickly set for the wood species you need to measure. Plus, the range of settings accommodates practically any softwood or hardwood species in the world. The Orion 950 can also be user-configured to measure some non-solid wood products such as plywood, OSB, or MDF. The Orion line even has settings information for many bamboo flooring products.

Non-Damaging Pinless Sensor
Every Orion meter features pinless technology, a non-damaging way to quickly and accurately measure the moisture content of wood.

Virtually Unaffected by Temperature
Every Orion pinless meter is virtually unaffected by the temperature of the wood of the environment. Unlike pin meters, Orion's sensing technology does not need correction or adjustment to account for the temperature of the wood.

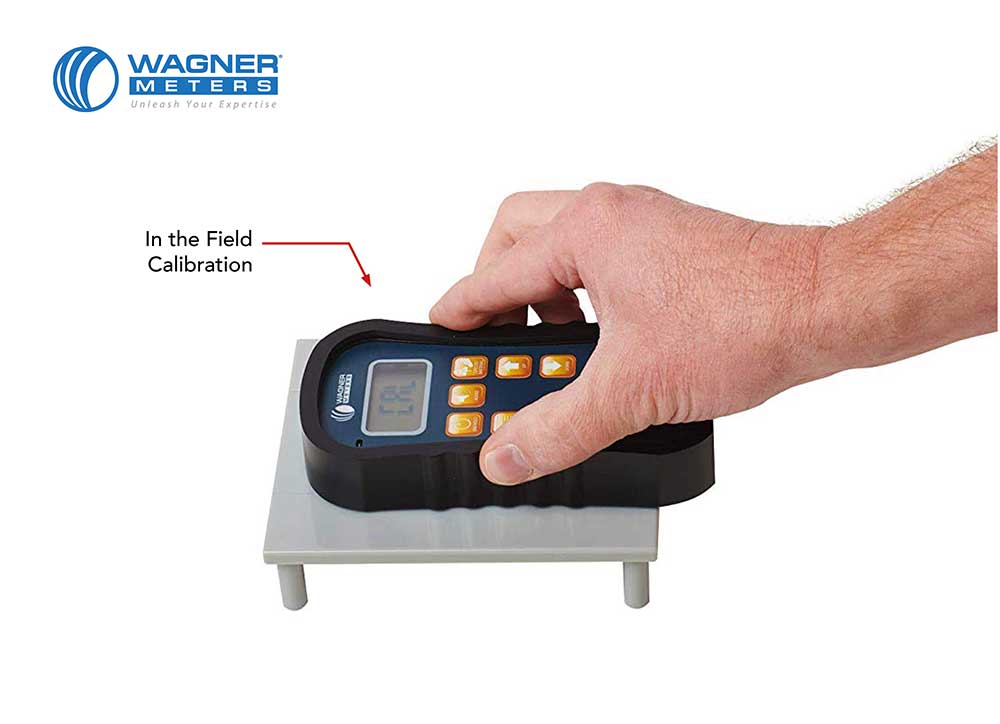

On-Site Calibration
No need to return your Orion to the factory for calibration. Every Orion meter comes with an individually paired On-Demand Calibrator allowing you to easily calibrate your meter anytime*, ensure that you will always be able to obtain accurate moisture measurements. ANIST-traceable version, with a certificate of calibration, can also be purchased
*patent pending

Relative Moisture Measurement Mode
A relative moisture measurement mode allows for taking relative moisture measurements in non-wood based materials engineered wood flooring. This means you can use an Orion moisture meter to obtain relative moisture conditions on a number of non-wood building materials and flooring products.

Press to Hold Readings
On every Orion moisture meter, if you press down once on the ON/HOLD button it will hold the moisture reading you took. This is quite useful is you're measuring in a hard to reach area.

Programmable Alarm
The Orion includes a user-programmable, audible alarm for high moisture content levels.

7-Year Warranty
Wagner Meters is proud to include the Orion line of pinless moisture meters within our Genuine Wagner 7-Year Warranty program. The longest-lasting warranty in the industry.

Ruggedized Protective Rubber Boot and Hard Case
Every Orion meter comes with a stylish rubber boot to help protect your meter from accidental drops or bumps just like a phone case protects a phone. In addition, a foam-lined rugged hard case is provided for your Orion and its calibration reference.

Bluetooth App Enabled
The Orion interacts through Bluetooth technology with a free mobile app for your Android or Apple smart device. The app is available on either Google Play or iTunes. You can receive and record data, set specifications for separate jobs, and much more!

Temperature and Humidity Sensor
Get the ambient temperature and relative humidity (RH) measurements for any room the Orion 950 is in with its built-in sensor. It's like having a Smart Logger and a moisture meter all in one!

Dew Point Calculations
Throw out your calculator because the Orion 950 will calculate the dew point of the environment for you. Utilizing the built-in temperature and humidity sensor the Orion 950 will calculate and display the current dew point whenever and wherever you need.

Equilibrium Moisture Content
The Orion 950 will also calculate if a wood specimen is at the critical threshold where it has reached its equilibrium with the environment and will no longer gain or lose moisture. The equilibrium moisture content (EMC) will tell you when your wood floor or wood projects are ready for installation or fabrication.

Grains Per Pound/Kilogram Mode
Grain per pound/kilogram (GPP/GPK) is a more precise measurement to know the exact weight of water vapor that is in the surrounding air. The Orion 950 will calculate and display instantly the grains per pound/kilogram, also known as the specific humidity of the air, compared to relative humidity.

Bluetooth® App Enabled

The Orion 950 interacts through Bluetooth technology with free mobile apps for your Android or Apple smart device. The app is available on either Google Play or iTunes. You can receive and record data, set specifications for separate jobs, and much more!To send readings data from the Orion 950 to the FloorSmart™ or Woodshop MC app on your smart device, follow these steps:

  1. Ensure that Bluetooth has been enabled on your smart device. The Orion 950 will automatically pair with your smart device when the power is on and the two devices are within Bluetooth range.
  2. Ensure that the DATA mode on the 950 is ON. Consult your Orion 950 manual for instructions.
  3. Open the FloorSmart or Woodshop MC app and enter a new job description or choose a current job to edit.
  4. Press the “Record” tab at the bottom left to access the “Record Readings” screen.
  5. Press the “Record” button at the top right to enable the app to record data from the Orion 950.
  6. Scan the target area with the Orion 950 and press the “ON/HOLD” button when you want to send a reading to the FloorSmart or Woodshop MC app.

Technical Specifications

Dimensions with Boot
Length: 5.75 inches (146mm)
Width: 3.0 inches (76mm)
Thickness: 1.0 inches (25mm)

Weight with Boot
7.2 oz. (204g)

Scanning Area
2.0 inches (50mm) x 2.5 inches (63mm)

9-volt battery (Wagner recommends using non-rechargeable Alkaline or Lithium or rechargeable NiMH batteries)

Auto Power Shut-Down
60 seconds

Internal Data Storage Capacity
100 saved readings

Measurement Ranges
Ambient Temperature: 32˚F to +110˚F (0˚C to +43˚C)

Ambient Relative Humidity: 0% to 100%

Equilibrium Moisture Content Measurement Range: 0-40.7%

Dew Point: -85˚F to +110˚F (-65˚C to +43˚C)

Absolute Humidity: 0 to 431.1 lb/ft (0 to 61.6 kg/m)

Specific Gravity Range for Wood Species
0.20-1.0 SG

Storage Temperature and Humidity
+50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing

Operating Temperature Range
+32˚F to +110˚F (+0˚C to +43˚C)
