300mm (12") Combination Planer & Thicknesser with Spiral Head Cutter Block PT310A Woodfast

Original price $4,949.00 - Original price $4,949.00
Original price $4,949.00
$4,949.00
$4,949.00 - $4,949.00
Current price $4,949.00
Availability: LOW STOCK

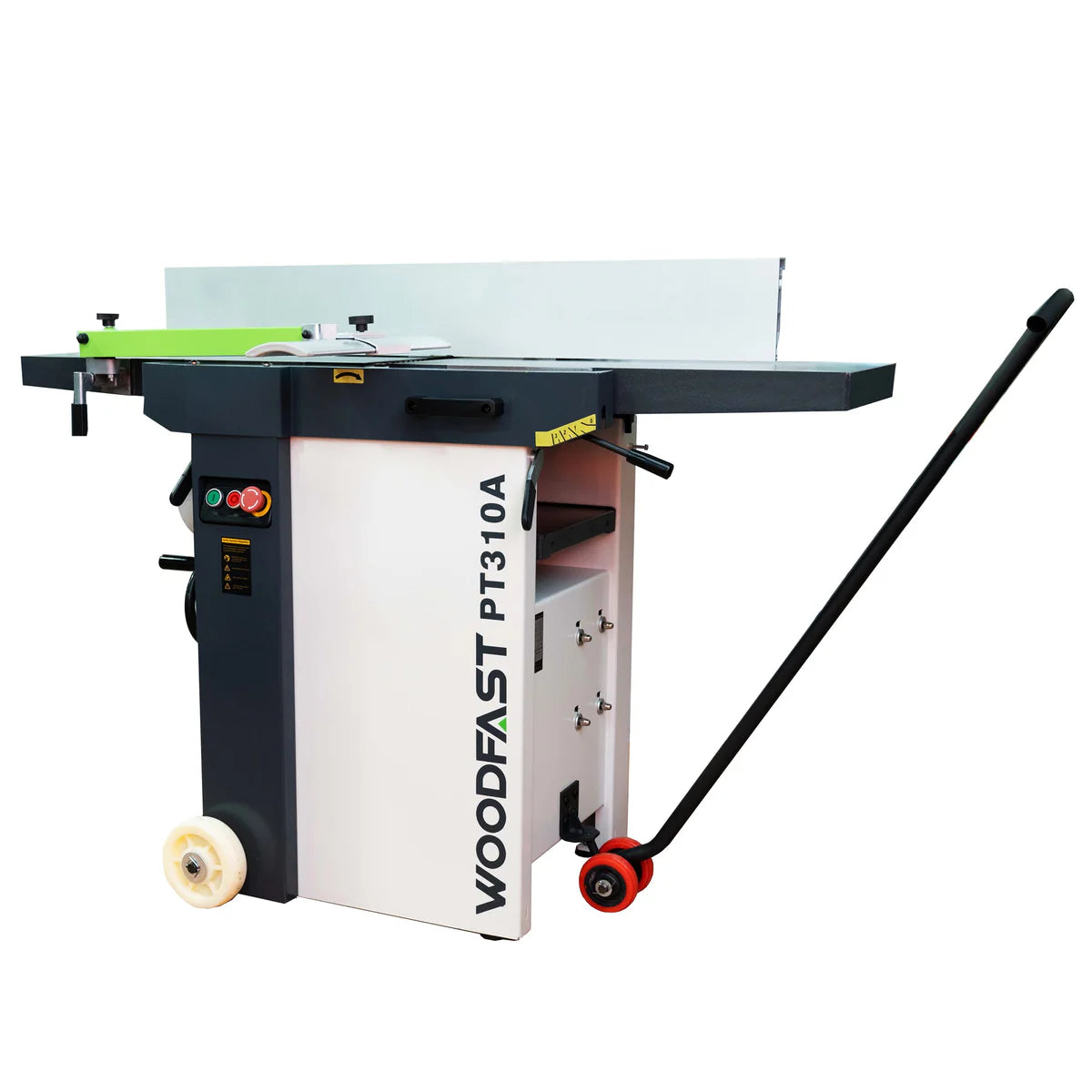

Introducing the Woodfast PT310A Planer Thicknesser - your all-in-one solution for precision woodworking! Experience the convenience and precision of a combined planer and thicknesser in one machine!

This powerful machine combines a planer and thicknesser in one, allowing you to effortlessly transform rough-cut wood into smooth, straight-edged boards. With its sturdy construction and efficient design, the PT310A is built to handle even the toughest woodworking projects.

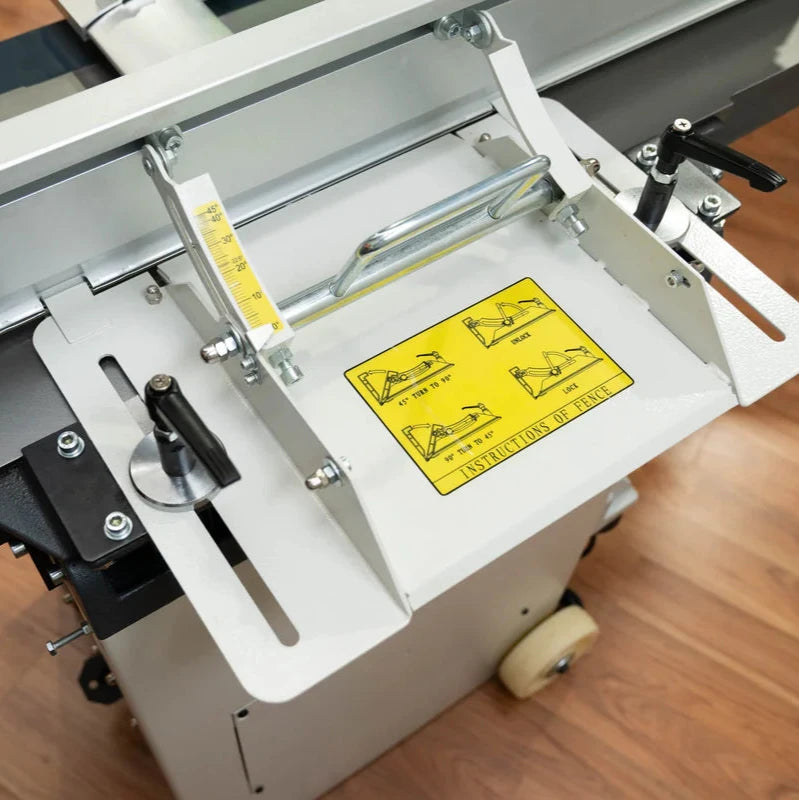

The PT310A has a large 310 x 255mm capacity. With the convenience of single handed table lift (no need to remove the fence), switching from surface planning to thicknessing cannot be easier! This versatile machine features an extra large aluminium extruded fence with centred controls and cam locking for quick adjustments. It’s a great machine to choose for the serious woodworker and the busy trade workshop.

Features

  • 310mm (12") wide cutting capacity
  • Automatic material thickness measurement for quick and easy setup via digital height readout.
  • Micromillemeter adjustment of material feeding
  • Large dust collection port for efficient dust extraction

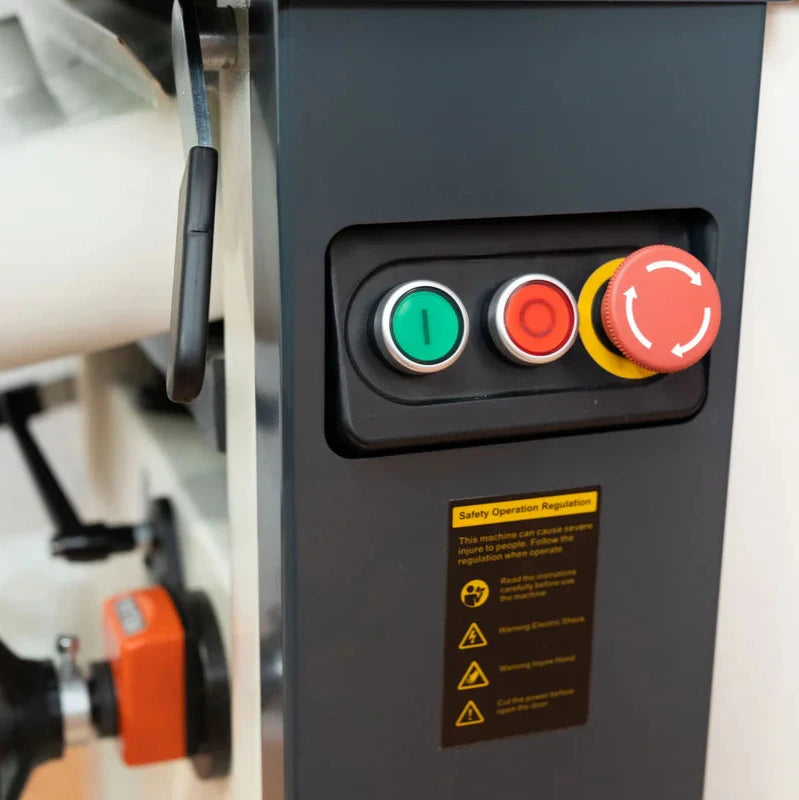

  • Emergency Stop

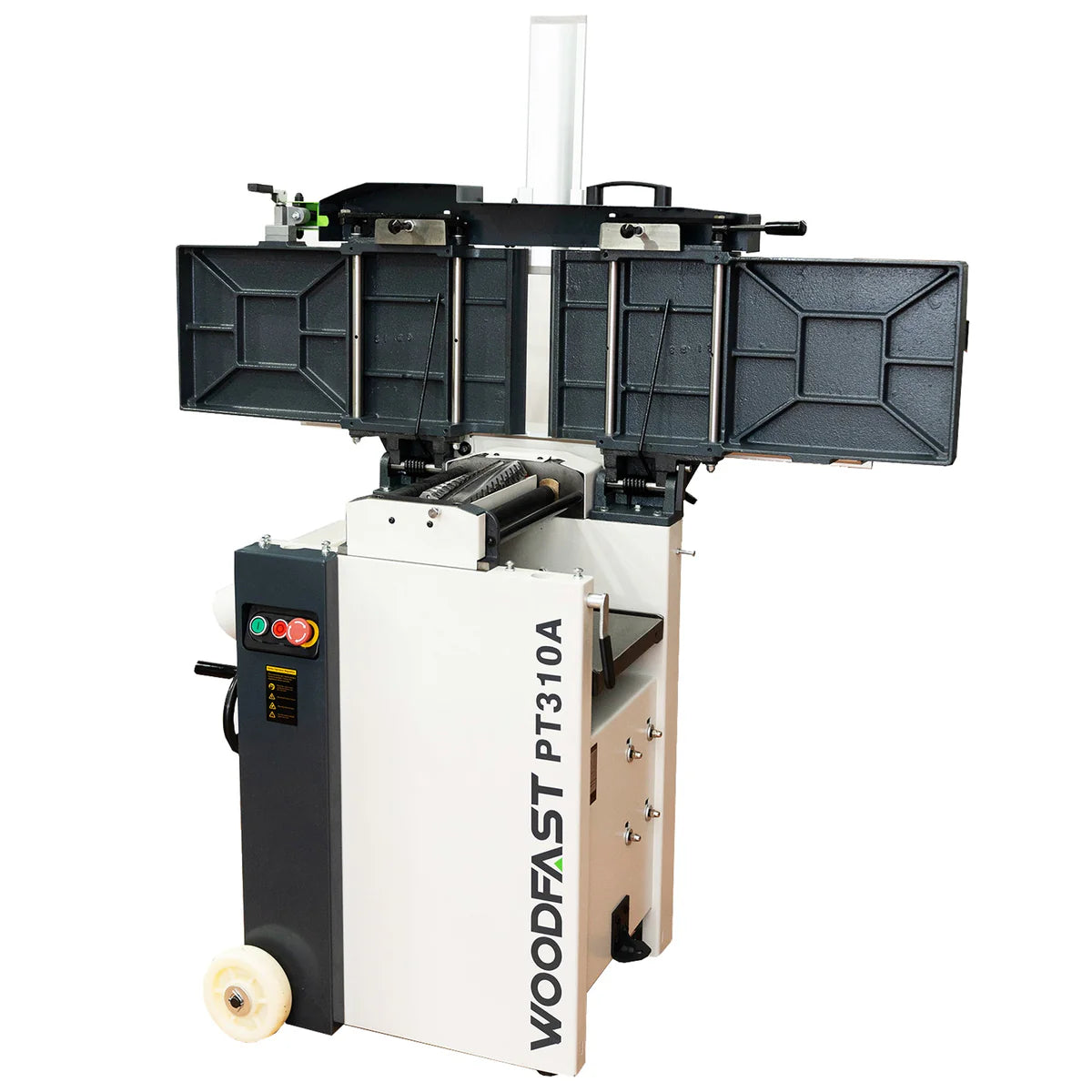

  • Dual Table Lifting System - lifts both tables at the same time when switching from one function to another.

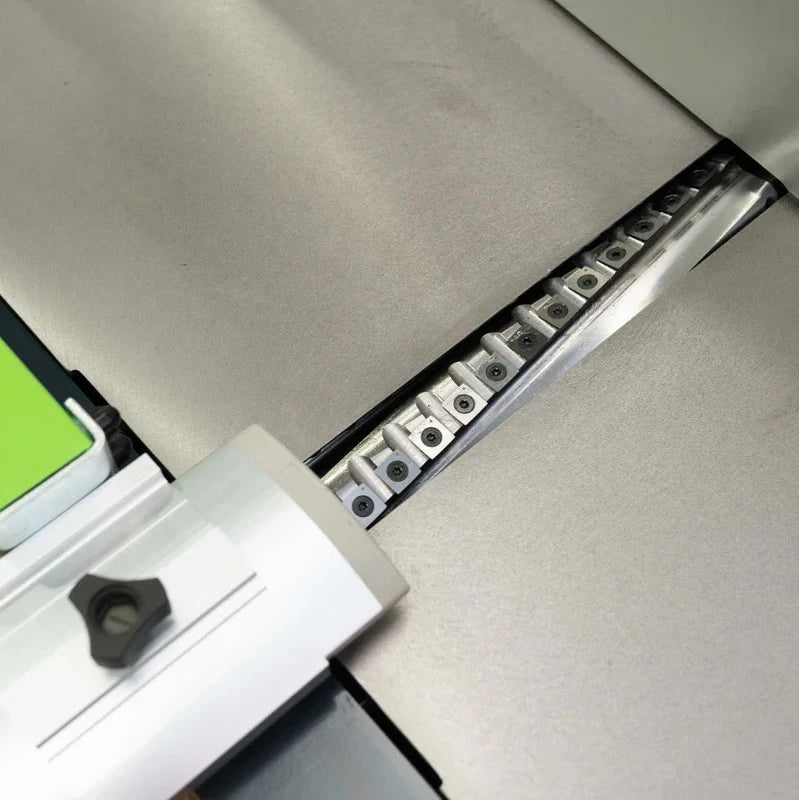

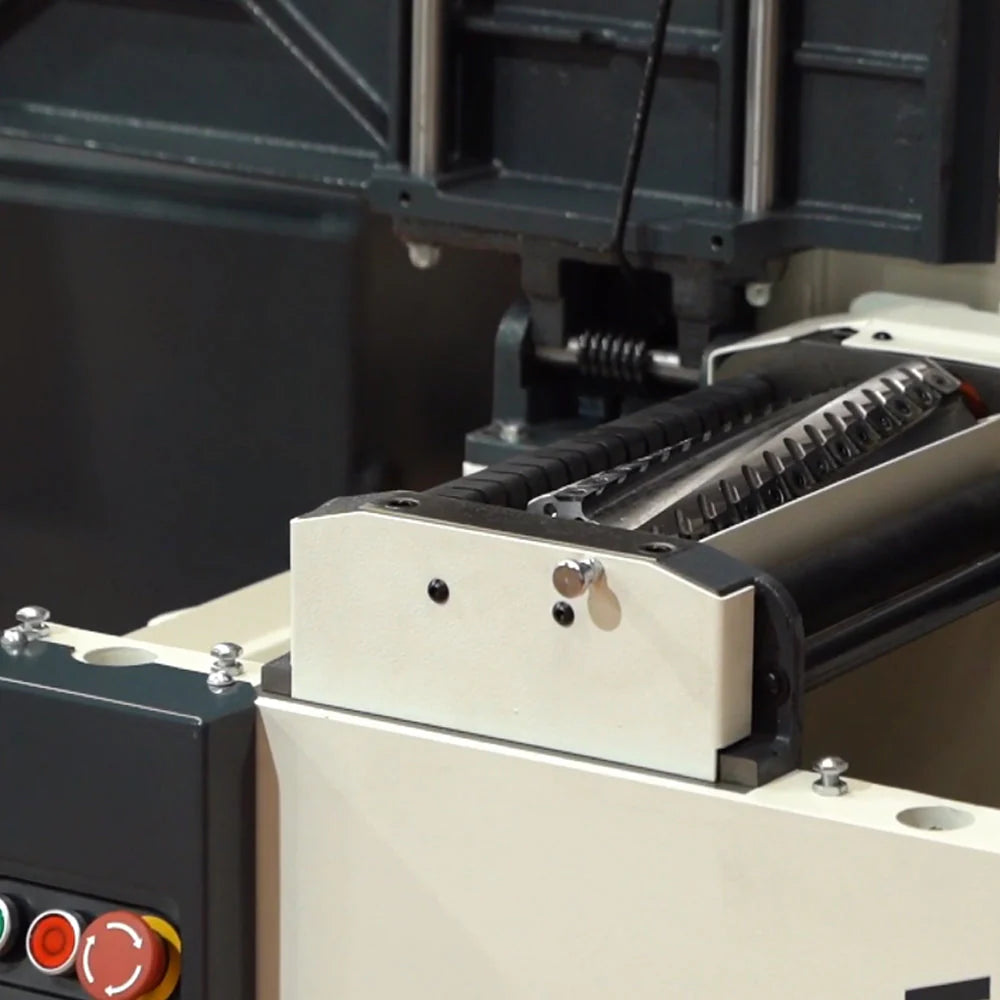

  • Spiral Head Cutter Block
  • Thicknessing Capacity is 4mm-225mm x 310mm width
  • Precision-machined cast iron (in feed and out feed) tables for smooth feeding and reduced vibration
  • Feed Rollers On / Off Lever

Looking for even more versatility in your woodworking projects? Consider upgrading to the Woodfast PT410A Planer Thicknesser - the big brother to the PT310A!

With a wider cutting capacity the PT410A is perfect for handling larger and more challenging woodworking projects making it a top choice for professional woodworkers who demand precision and reliability the PT310A with a 410mm (16") cutting width capacity.

Optional
  • PT310A Mobility Kit (shown pictured - sold separately)
  • Thicknesser Table Extension

Specifications:

  • Motor power: 3HP
  • Cutting capacity: 310mm (12") wide
  • Maximum cutting depth: 4mm (5/32")
  • Table size: 560 x 310mm
  • Dust port size: 100mm

Technical

Motor Power (Input) - 3HP / 2200W
Blade Type - Spiral Head Cutter Block
Blade Width - 310mm
Blade - Cutter Head Block - Diameter - 70mm
Blade - Cutter Head Block Speed - 5500
Cutting Capacity - Height - 225
Dust Port - 1 x 100mm (Can used in both Planing and Thicknessing Mode)
Feed Speed - 7m/min
Power Source - 240V 50Hz Single Phase
Warranty 3 Years (Home User) or 1 Year (Commercial User)


Packaging + Shipping

Shipping Length - 1480mm
Shipping Width -  580mm
Shipping Height - 1100mm
Shipping Weight (Gross) - 280 kg
Packaging - Crated on skid


Delivery

We can send Australia wide!

Machines under 30kg & easily handled by a single person can usually be sent by courier (no PO Boxes or Parcel Lockers).

Machines weighing more than 30kg must be placed on a skid or pallet.
If a product is over 30kg you can:

- Pick it up from the closest courier depot.

- Pay a tailgate drop fee for delivery to door.

For a heavy item quote, please contact us below!
