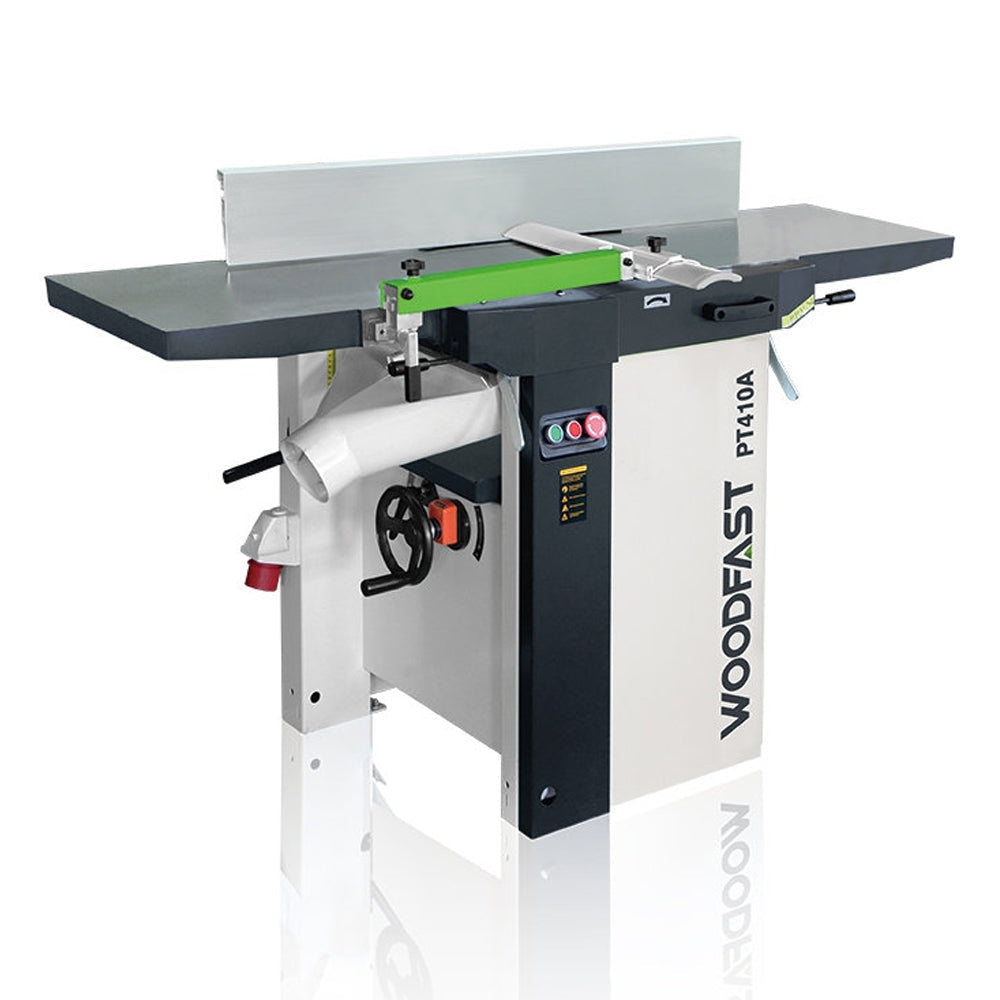

410mm (16") Combination Planer & Thicknesser with Spiral Head Cutter Block PT410A Woodfast

Following the outstanding market success of the PT310A 12″ Planer Thicknesser, WOODFAST GROUP AUSTRALIA has decided to launch the heavy-duty PT410A.

This impressive machine, weighing in at 365kg and available in either 3kw (4HP) 1 Phase or 4kw (5.3HP) 3 Phase. The true Helical Style / Spiral Head cutter block is 70mm in diameter with 72 carbide 4 sided knives and offers a full 410mm of superb wood jointing and thickness capacity. The helical cutter block reduces noise and presents a superior finish to traditional straight blades.

With the convenience of a single-handed table lift (no need to remove the fence), switching from surface planning to thickness cannot be easier. This versatile machine features an extra-large aluminium extruded fence with centered controls and cam locking for quick adjustments. In Jointer mode, the table length is 1659mm. The added Thicknesser Outfeed Extension Table (standard) gives extra support for those longer, heavy boards.

It’s a great machine to choose for serious woodworkers and busy trade workshops.

Features

• 410mm (16") wide cutting capacity
• Automatic material thickness measurement for quick and easy setup via digital height readout.
• Micromillemeter adjustment of material feeding
• Large dust collection port for efficient dust extraction
• Emergency Stop
• Dual Table Lifting System - lifts both tables at the same time when switching from one function to another.
• Spiral Head Cutter Block
• Thicknessing Capacity is 4mm-225mm x 410mm width
• Precision-machined cast iron (in feed and out feed) tables for smooth feeding and reduced vibration
• Feed Rollers On / Off Lever


• PT410A Mobility Kit (shown pictured - sold separately)

Specifications:

• Motor power: 3kw (4HP) 1 Phase or 4kw (5.3HP) 3 Phase

• Cutting capacity: 410mm (16") wide
• Maximum cutting depth: 4mm (5/32")
• Dust port size: 100mm
