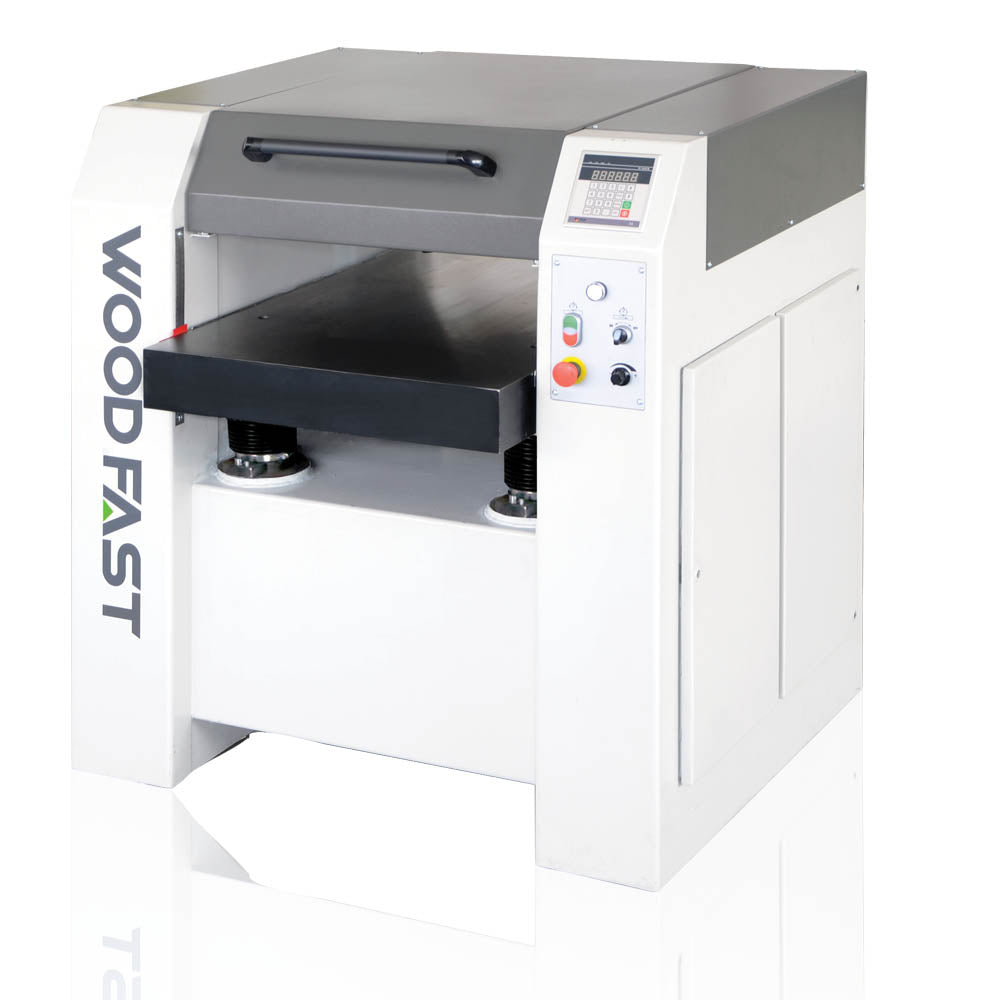

530mm (21") Thicknesser with Spiral Head Cutter Block TH530A Woodfast

Woodfast  |  SKU: 8001570
$14,95000

Description

Surfacing lumber to a specific thickness requires a machine that has plenty of power to remove a lot of material from oversized lumber, especially if the boards are wide and hardwood. TH530A with spiral head cutters has proven that it can handle these conditions and reduce smooth surfaces that required little sanding before finishing.

The very high work capacity from 5 to 300mm allows optimum machine use and offers strong flexibility for wood machining. TH530A has brought industrial features and design to this machine, but saving price within justifiable reach of a good thicknesser for a workshop.

Featuring digital height adjustment control for easy & repeatable thicknesses.

Technical

Blade Type Spiral Head Cutter Block
Blade (Main) - Speed 5500RPM
Blade - Cutter Head Block - Diameter 117 mm
Blade- Cutter Head Block - Blade Size 15mm x 15mm x 2.5mm (150mm Radius)
Feed Speed 4-16 m/min
Cut Max. Depth @ 0° 8 mm
Material (Stock) - Maximum Width 530 mm
Material (Stock) - Maximum Height 300 mm
Table Size 1000mm x 530mm
Motor Power (Input) - 7 HP
Power Source - 415V Three Phase
Warranty 3 Years (Home User) or 1 Year (Commercial User)

Packaging + Shipping

Shipping Length 116 cm
Shipping Width 122 cm
Shipping Height 131 cm
Shipping Weight (Gross) 526 kg
Packaging Wooden Box / Crate with Skid
