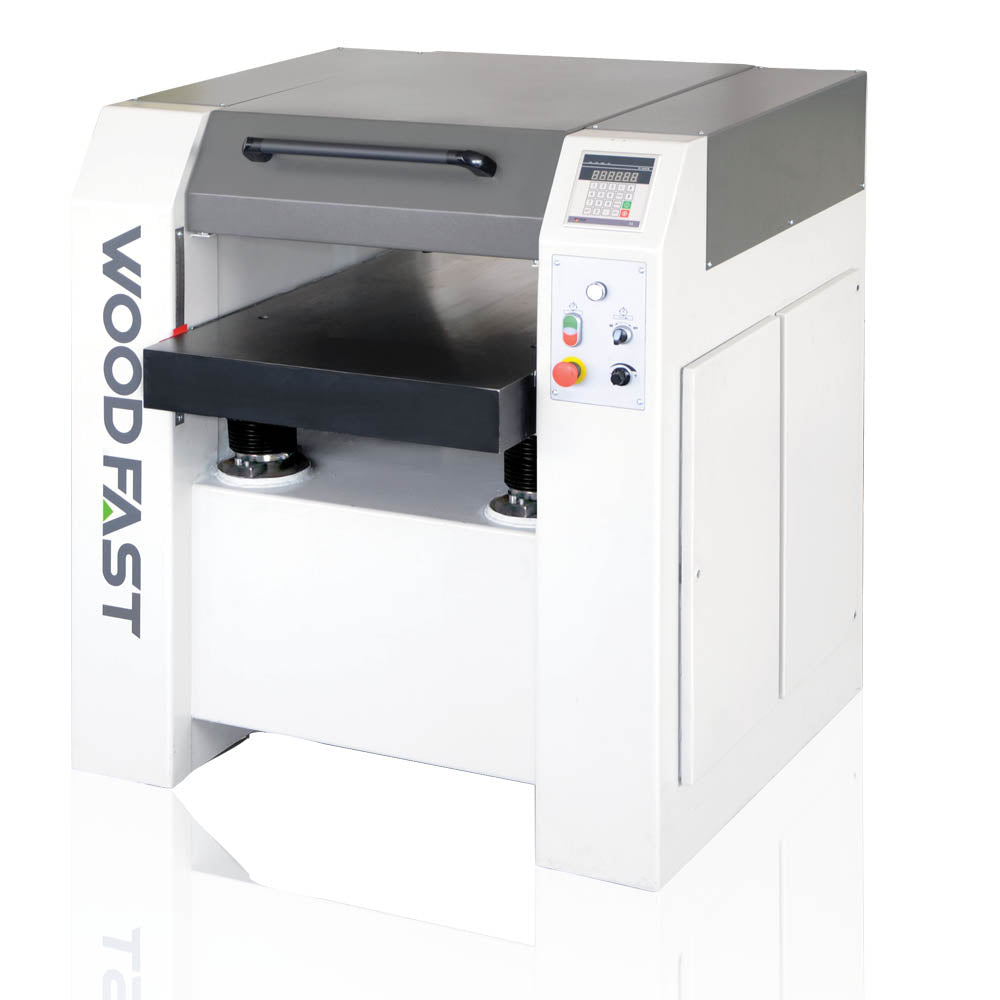

Woodfast 630mm (25") Industrial Thicknesser with Helical Cutterhead 10HP 415V – TH630B

The Woodfast TH630B Industrial Thicknesser is built for workshops that need serious capacity, repeatable accuracy and reliable performance when processing large volumes of timber. With a wide 630mm (25") planing capacity, powerful 10HP three-phase motor and spiral head cutter block, it is designed for demanding joinery, cabinetry and timber processing applications.

Introduced in 2025 as the successor to the TH630A, the TH630B adds a new touch screen display panel for faster, more precise control. Electronic table adjustment makes it easier to return to accurate thickness settings, while variable feed speeds allow the machine to be set up to suit different materials and finish requirements.

Why You'll Choose It

• Wide 630mm (25") capacity handles large boards, panels and demanding production work
• New touch screen display provides straightforward, precise machine control
• Powerful 10HP 415V three-phase motor built for heavy-duty industrial use
• Spiral head cutter block with 108 cutter tips delivers a smooth finish with reduced tear-out and quieter cutting
• Electronic table adjustment provides precise, repeatable thickness settings
• Variable feed speeds let you balance production speed and surface finish to suit the material
• Heavy-duty cast-iron construction provides the mass and stability needed for accurate machining
• Four-column table support maintains stability and alignment under load

630mm Capacity for Serious Timber Processing

The TH630B gives you a generous 630mm (25") planing width and a maximum cutting height of 300mm, providing the capacity needed for wide boards and substantial timber components. It is well suited to professional joinery shops, cabinetmaking workshops and other environments processing larger material on a regular basis.

Spiral Head Cutter Block

A 117mm diameter spiral head cutter block runs at 5,500RPM and carries 108 individual 15 x 15 x 2.5mm cutter tips with a 150mm radius. The spiral cutting action helps produce a cleaner surface with reduced tear-out while also lowering cutting noise compared with conventional straight-knife cutter blocks.

Precise Digital Adjustment

The 2025 TH630B upgrade introduces a modern touch screen display panel combined with electronic table adjustment. This gives the operator straightforward control over thickness settings and makes repeatable positioning easier when processing multiple components to the same dimension.

Stable Feeding from Start to Finish

A spring-loaded pressure bar and double outfeed rollers help keep timber controlled as it passes through the cutter block. Combined with the robust four-column table support system, the design helps minimise vibration and maintain consistent feeding during demanding production work.

Developed with Australian Workshop Experience

The TH630B continues Woodfast's long history of woodworking machinery development, with ongoing Australian research and development informed by feedback from local service technicians and woodworking professionals. The result is an industrial thicknesser developed around the accuracy, reliability and practical performance required in demanding workshops.

Perfect For

• Professional joinery workshops
• Cabinetmaking and furniture production
• Processing wide solid timber boards
• Commercial timber processing
• Production workshops requiring repeatable thicknessing
• Educational and training workshops requiring industrial machinery

Specifications
