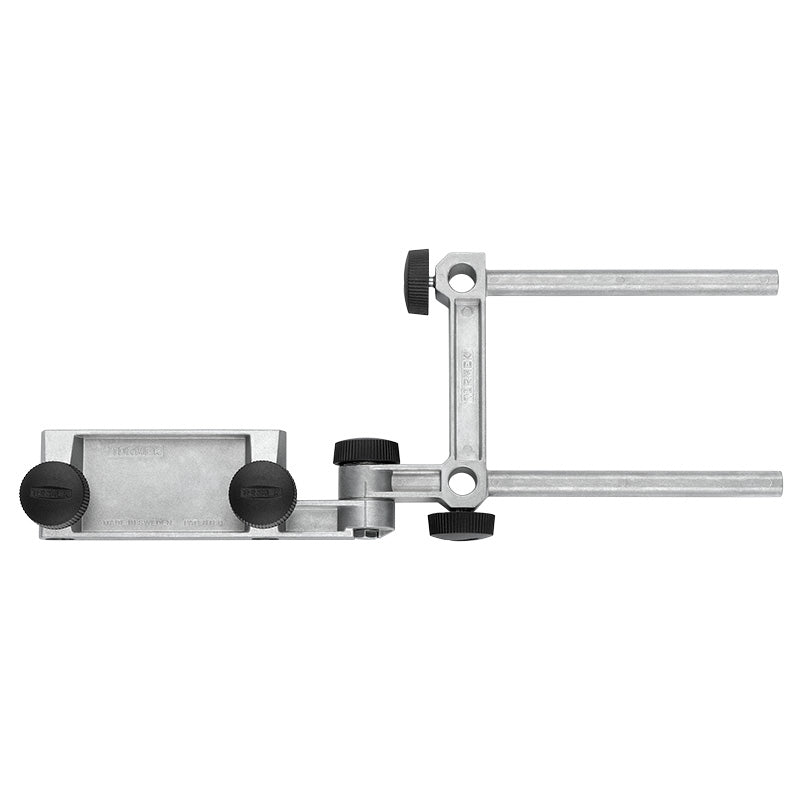

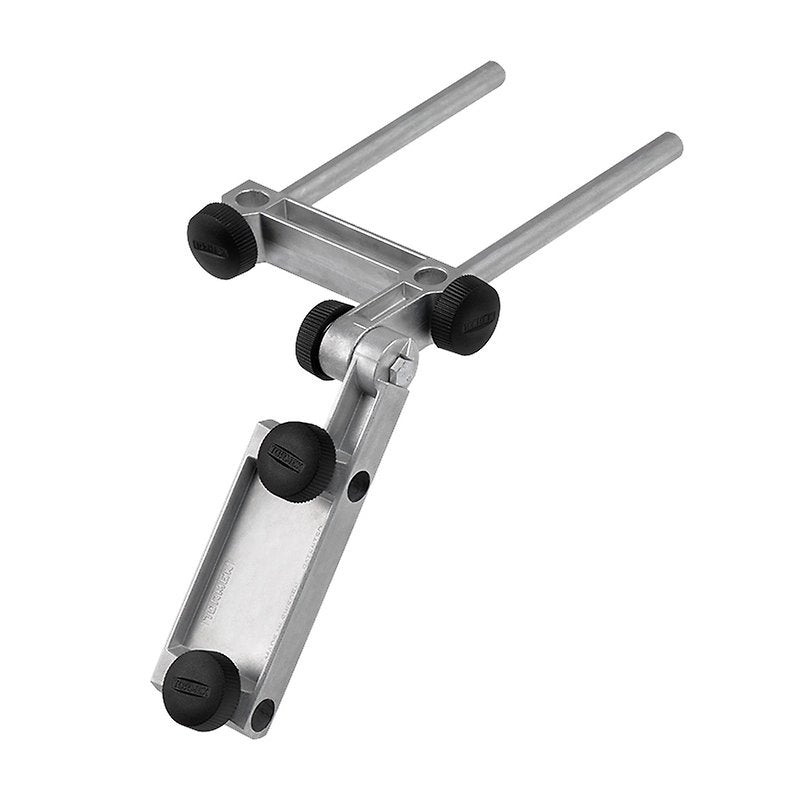

Tormek Multi Base MB-102

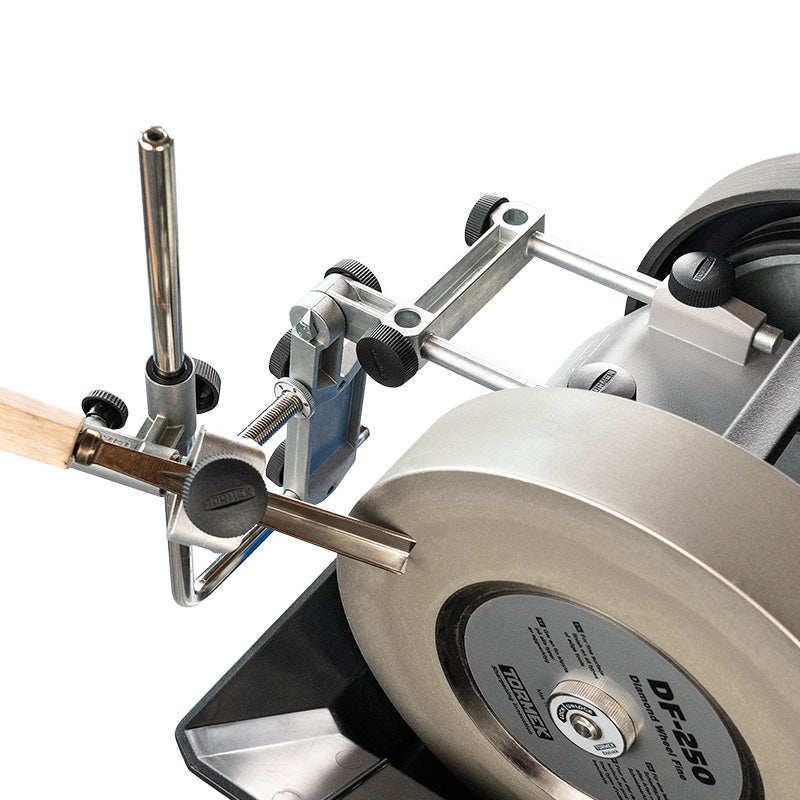

The NEW MB-102 Multi Base (replaces MB-100) allows you to sharpen on the side of the Tormek diamond grinding wheels to obtain a flat bevel, which is preferred in specific applications. The Multi Base has an adjustable joint that allows you to adjust the sharpening position according to the best options for each tool and jig. It can be mounted in both the vertical and the horizontal mounts of your machine, whichever provides the best access for your tool.

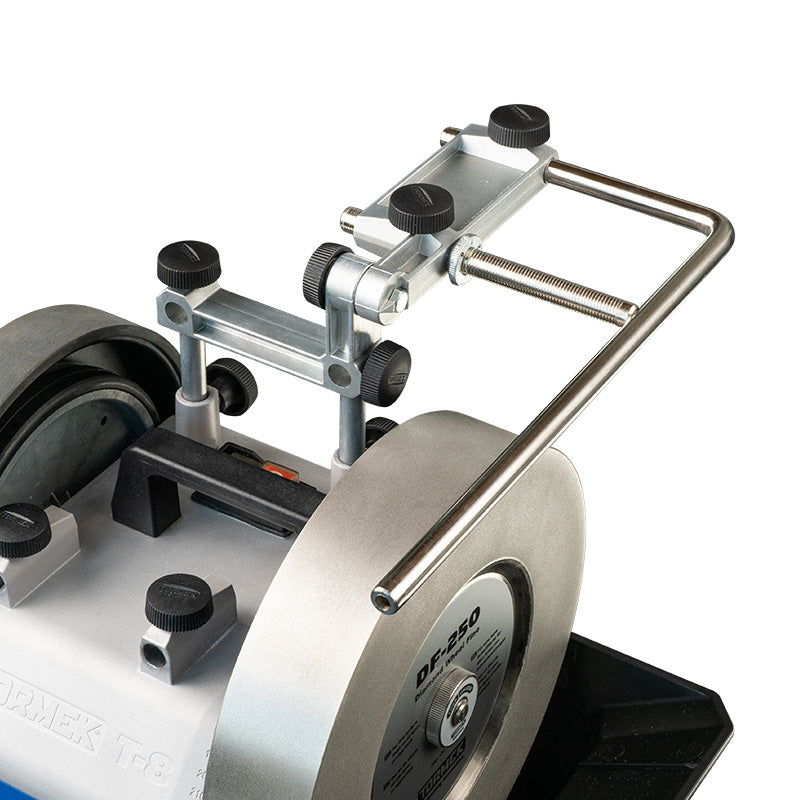

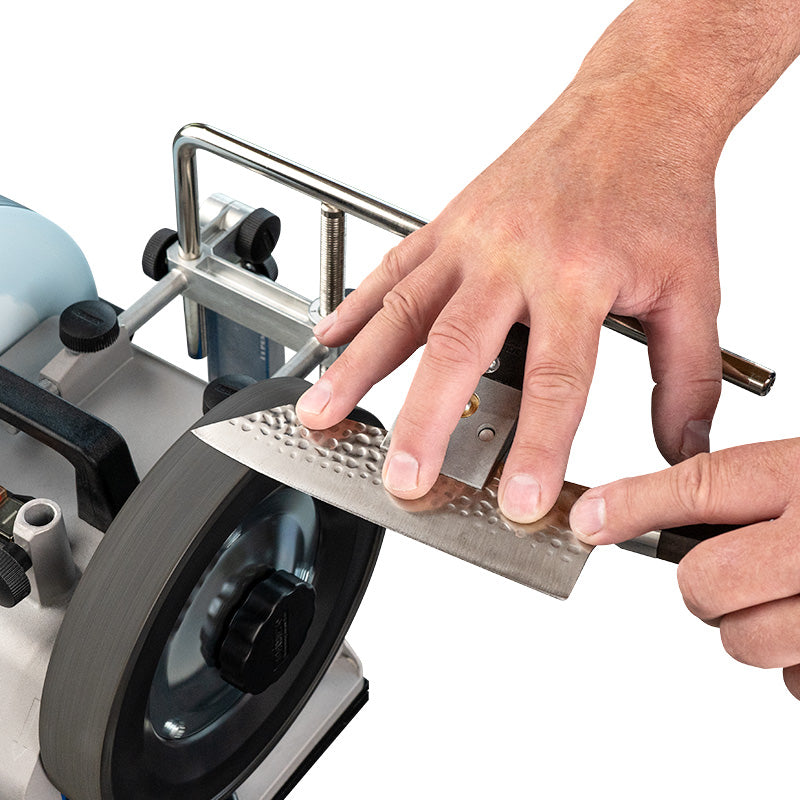

The MB-102 Multi Base also has two mounts, allowing for vertical positioning of the universal support in front of the machine when mounted in the horizontal mounts of your machine. This provides better access for sharpening knives' “edge trailing” (with the edge in the same direction as the grinding wheel rotation) and for guided honing using knife jigs. The MB-102 Multi Base can be used with most Tormek jigs for different applications.

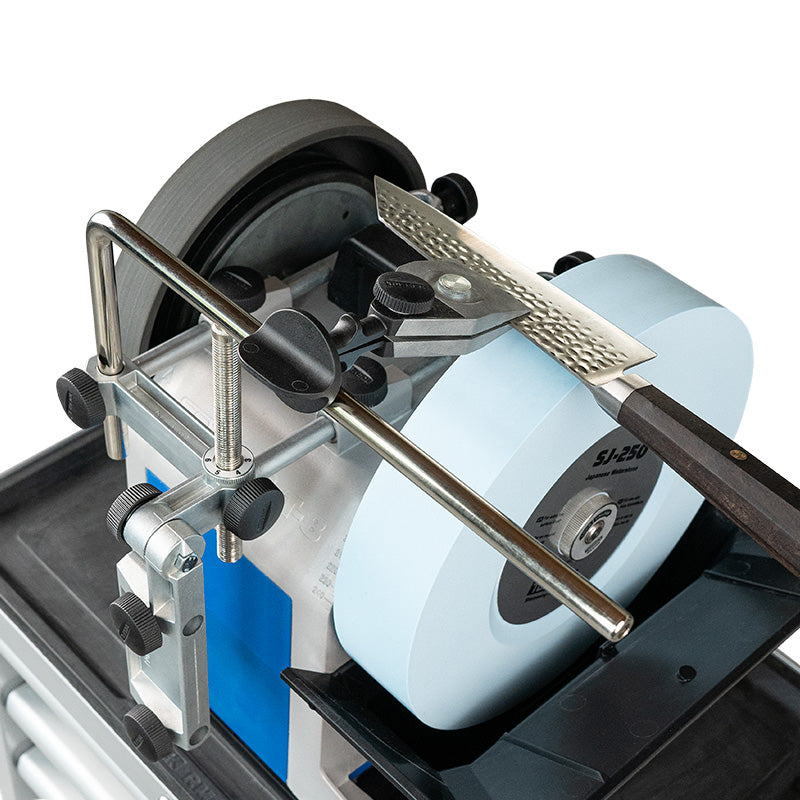

The new MB-102 Multi Base has a simple yet clever new feature, with two extra mounts for the universal support, which allows for vertical positioning of the universal support in front of the machine. This provides better access for sharpening knives edge trailing (with the edge in the same direction as the direction of rotation of the grinding wheel) and for guided honing using knife jigs.
The function for sharpening on the side of Tormek diamond grinding wheels remains the same.
- Product Name: MB-102 Multi Base
- Packaging dimensions: Width: 353 mm Depth: 180 mm Height: 67 mm
- Product dimensions: Width: 332 mm Depth: 126 mm Height: 37 mm
- Weight: Inc. packaging: 0,95 kg Product only: 0,77 kg
- Colour: Grey
- Material: Cast zinc, plastic knobs
Well-grounded in the Swedish tradition of advanced innovation, functionality and quality, Tormek has developed a unique sharpening system that has come to set a standard in modern edge tool sharpening around the globe.
