EHL 65mm Single Handed Planer in Systainer - EHL 65 EQ-Plus

Special order item. Please allow 5 - 14 business days before collection or postage. Please contact us for accurate item availability. Special order conditions apply.

Original price $659.00 - Original price $659.00
Original price
$659.00
$659.00 - $659.00
Current price $659.00

Weighing just 2.4 kg and with a compact design, the EHL 65 electric planer is not only the lightest and lowest one-handed planer in its class, but also the most powerful. 4 mm planing and 23 mm rebate depth and excellent surface finish thanks to the unique spiral blade with pulling cut. With SoftGrip handle and cutting depth adjustment, single-button operation and non-slip ridges on the housing for a secure hold. This means that the planer can be guided effortlessly, whether it's horizontally or vertically, with one or two hands, with the left hand or right hand. In short: It's ergonomic. Fast. Precise. The one-handed planer for professionals.

Main applications

  • Trimming work
  • Assembly work
  • Planing carcasses, trim, skirting, infill panels, doors, etc.
  • Applications where convenient one-handed operation is required
Unique results

The EHL 65 works with a pulling cut for a particularly accurate planing result. No chatter marks, no reworking. This is made possible by the spiral blade, which works at an incline and planes the wood in a way that is gentle on both the material and the tool.

Perfect handling

The planing width of 65 mm enables versatile use as an assembly plane. Weighing just 2.4 kg, it is extremely handy: Compact installation height, soft grip on the handle and cutting depth adjustment, additional grips for an even more secure hold. Further impressive details: Convenient single-button operation for switching on and off.

Quick blade changes

The blade replacement system with automatic adjustment function eliminates the need to adjust the cutting circle diameter. Practical: The blade replacement tool is attached directly to the machine.



Nothing quieter

The EHL 65 is significantly quieter than other planers. In fact, it is so quiet that it makes less noise under load than other planers do when idling. This is an important contribution to safety while working. Yet another benefit of the special shape of the spiral blade.

Versatile

23 mm rebate depth for a greater application spectrum.

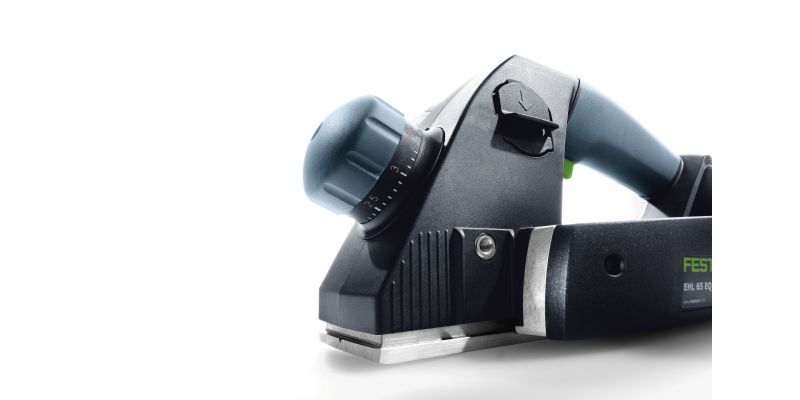

Stepless cutting depth adjustment

The infinitely adjustable cutting depth is a valuable feature in practice. You can use the rotating handle to accurately adjust the cutting depth, while carrying out your work.

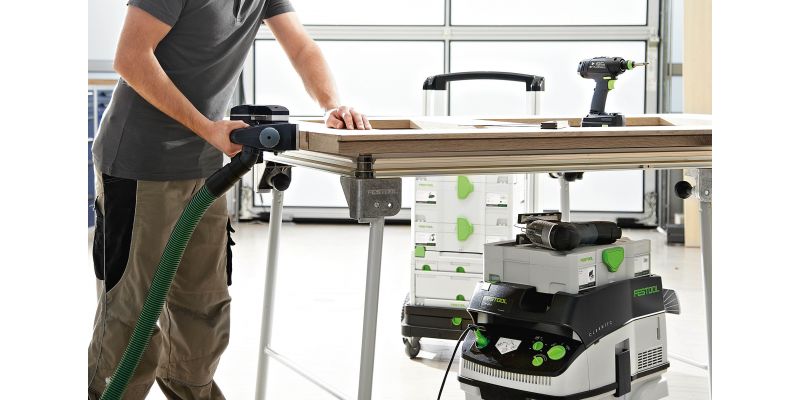

Flexible dust extraction

The extractor hose can be connected to the left or the right according to requirements. This means you can work with suction without impairing machine use in any situation.

For quick device changeover

Thanks to the plug-it system, the device can be changed quickly – directly via the cable and not via the socket or extractor: One cable for all devices. And even if the cable breaks, it can be replaced quickly without any problems.

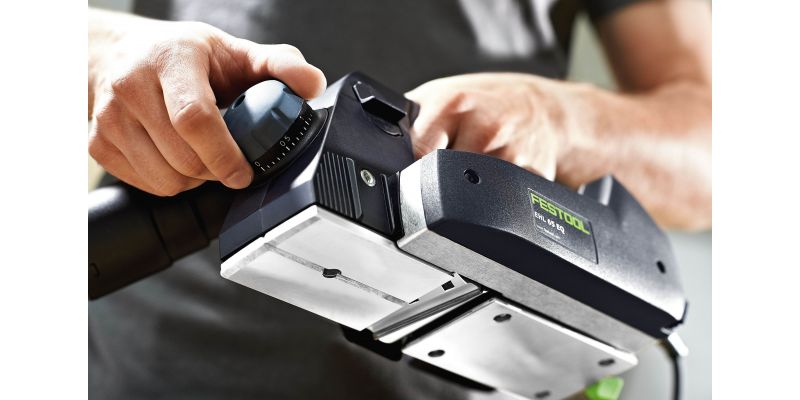

Protects the workpiece and blade

The spring-loaded shoe keeps the blade away from the surface. The shoe folds inwards automatically when the machine is set down – even on narrow edges.

Orientation aid

The "rucksack" on the back of the plane picks up the exact width of the blade. The plane blade width is 65 mm, which is optimised for typical installation applications.

CLEANTEC Connection System
Integrated bayonet fitting as the connecting element between the extractor and the tool.
Electronic
Speed control for adjusting to the working material.
FastFix
Makes changing accessories or consumables for routing, sawing, planing, sanding, drilling and screwdriving tools easier.
Plug-it
Removable, replaceable power cable with safety lock for fast switchover.
Plus Systainer
Plus versions of power tools come in systainer storage containers.
Spir-O-Cut
The one flute planing head offers decisive advantages. No need to adjust the cutting circle diameter after blade replacement and drawing cut for high surface quality.

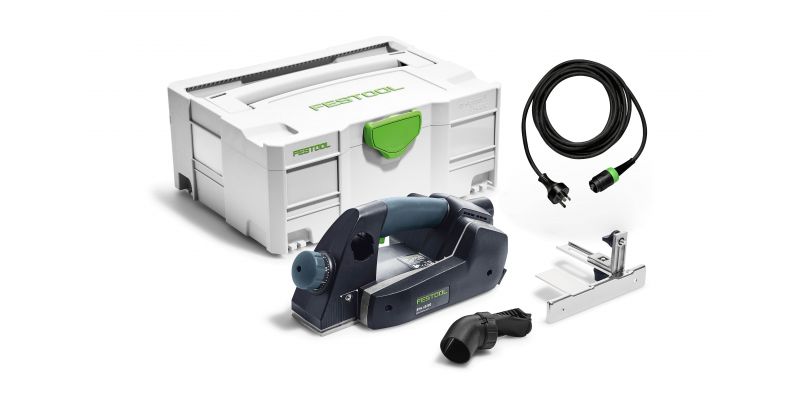

Includes
EHL 65 EQ 65 mm Planer
Parallel Side Fence
Plug-it Lead
SYS 3 T-LOC Systainer
Tool Manual

Tech Specs
Tool Weight (kg) 2.4 kg
Rotational Speed (rpm) 15,600 rpm
Planing Width (mm) 65 mm
Planing Depth (mm) 0 mm - 4 mm
Rebate Depth (mm) 23 mm
Dust Extraction Connection Diameter (mm) 27mm internal 36 mm external
Power Lead Type Plug-it Lead
Power Source Corded
Power Consumption (W or kW) 720 W
Motor Type Brushed
