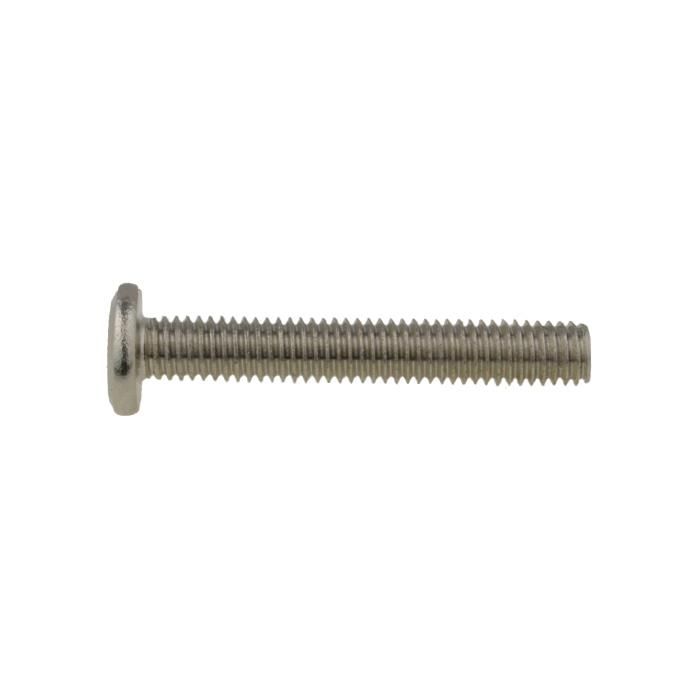

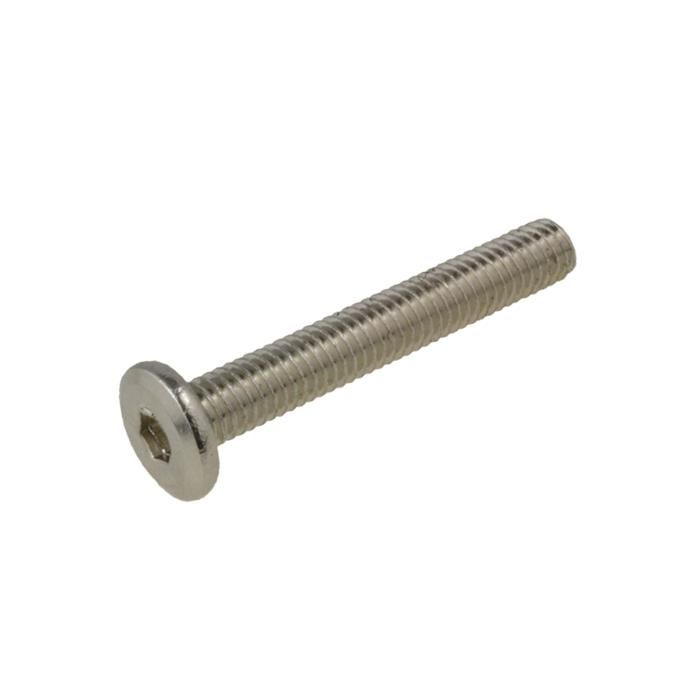

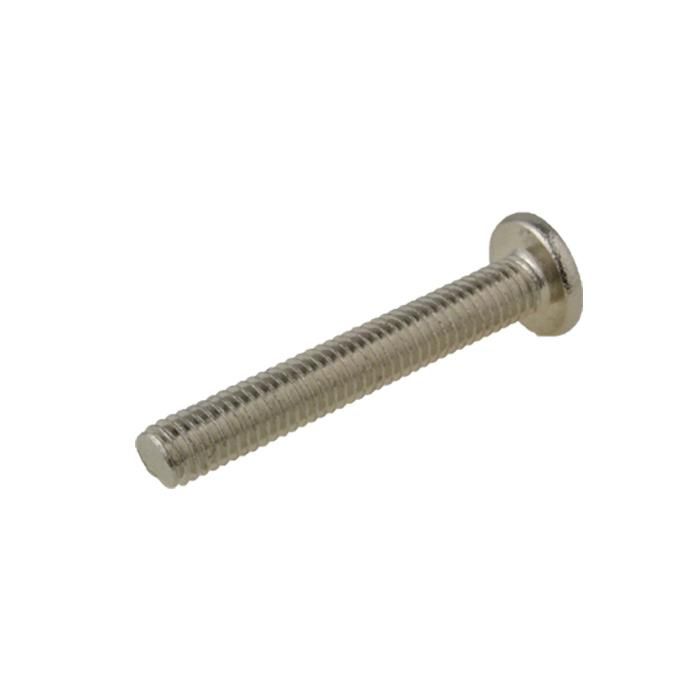

M6 Flathead / JCB Connecting Bolts 20mm

• Great for installing C Channel or Legs to a timber top
• Connecting bolts are commonly used with threaded inserts, connector cap nuts, T nuts or a cross dowel
• M6 thread with a 5mm hex drive - use a 5mm allen key
• Nickel Plated finish - Stainless Steel also available on request

Specifications

Head Type: Flat Head
Size: M6 (6mm)
Size / Diameter: 6mm | M6
Size & Thread Pitch: M6 x 1.00p Coarse
Thread Pitch: 1.00mm
Thread Direction: Right Hand
Thread Type: Metric - Coarse
Class / Grade: Low Tensile Class 4.6
Material: Mild Steel
Finish: Nickel Plated
Corrosion Protection Level: Very Good
Allen Key Size: 4mm
Drive Size: 4mm
Thread Length (t): 20mm
Product Diameter (d): 5.70 - 6.00mm
Head Diameter (a): 12.00mm
Head Height (h): 2.55mm
