M6 Threaded Inserts - Un-Flanged

Original price $1.10 - Original price $330.00
Original price
$1.10
$1.10 - $330.00
Current price $1.10

    Save up to 70% buying in bulk!
    • Great for installing C Channel or Legs to a timber top
    • Insert nuts provide a strong metal female threaded section in timber to fix to
    • Un flanged - enables nut to be embedded deeper into the substrate
    • Also known as wood shield nuts or Skein Nuts
    • Coarse external wood thread ensures secure fixing and offers strong resistance to pull-out due to torsion or vibration

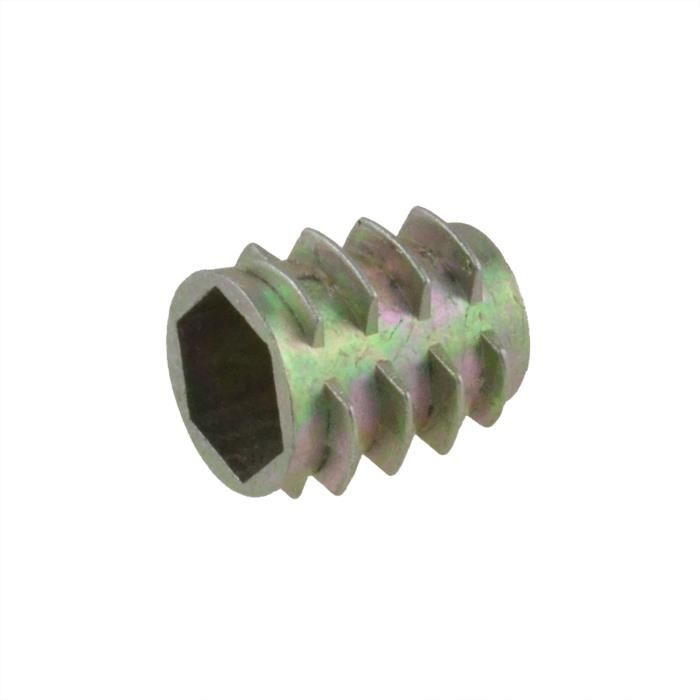

    • To aid installation, there is an allen key hex socket on one end

    Specifications

    Head Type: No Head
    Size: M6 (6mm)
    Size / Diameter: 6mm | M6
    Size & Thread Pitch: M6 x 1.00p Coarse
    Thread Pitch: 1.00mm
    Thread Direction: Right Hand
    Thread Type: Metric - Coarse
    Class / Grade: Low Tensile Class 4.6
    Material: Zinc Alloy
    Finish: Zinc Yellow
    Corrosion Protection Level: Moderate
    Allen Key Size: 6mm
    Drive Size: 6mm
    Body Diameter (n): 8.90 - 9.00mm
    Nut Height Overall (b): 15mm
