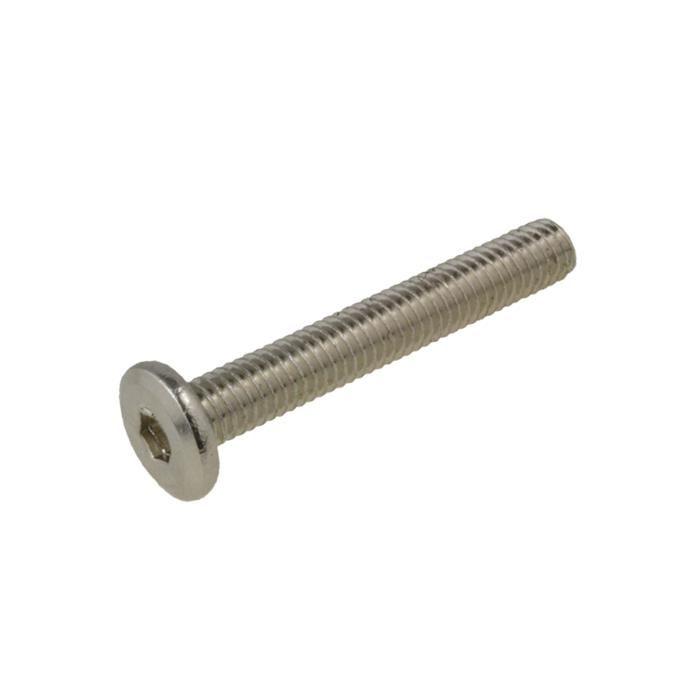

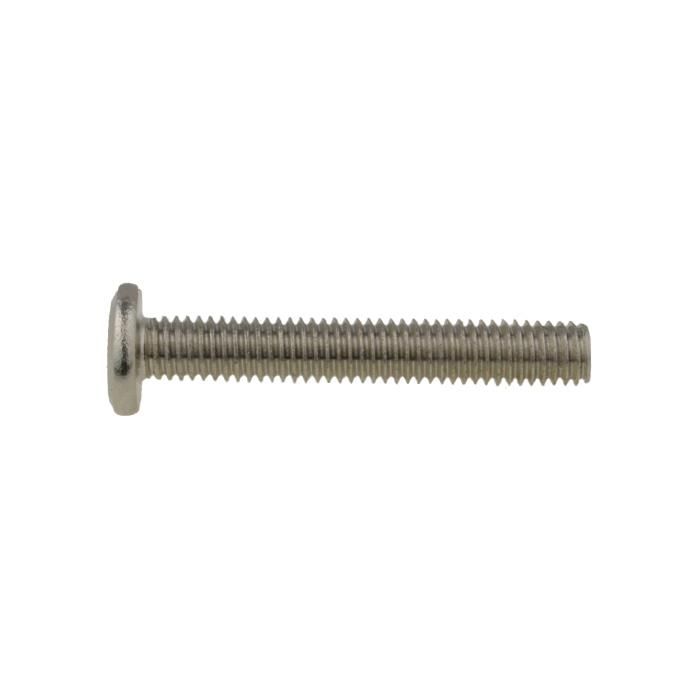

M8 Flathead / JCB Connecting Bolts 25mm

Original price $1.10 - Original price $385.00
Original price
$1.10
$1.10 - $385.00
Current price $1.10

Save up to 70% buying in bulk!
  • Great for installing C Channel or Legs to a timber top
  • Connecting bolts are commonly used with threaded inserts, connector cap nuts, T nuts or a cross dowel
  • M8 thread with a 5mm hex drive - use a 5mm allen key
  • Nickel Plated finish

Specifications

Head Type: Flat Head
Size: M8 (8mm)
Size / Diameter: 8mm | M8
Size & Thread Pitch: M8 x 1.25p Coarse
Thread Pitch: 1.25mm
Thread Direction: Right Hand
Thread Type: Metric - Coarse
Class / Grade: Low Tensile Class 4.6
Material: Mild Steel
Finish: Nickel Plated
Corrosion Protection Level: Very Good
Allen Key Size: 5mm
Drive Size: 5mm
Thread Length (t): 25mm
Product Diameter (d): 7.70 - 8.00mm
Head Diameter (a): 12.00mm
Head Height (h): 4.00mm
