OF 1400 70mm Plunge Router in Systainer - OF 1400 EBQ-Plus

Original price $1,319.00 - Original price $1,319.00
Original price
$1,319.00
$1,319.00 - $1,319.00
Current price $1,319.00

The handy multi-talent: The OF 1400 router weighs just 4.5 kg – one of the lowest machine weights in its class. The 70 mm routing stroke is impressive when making recesses for fittings or routing with templates. It also has a comprehensive set of equipment that enables it to master virtually any routing task.

Main applications

  • Rounding, chamfering, rebating and profiling edges
  • Routing circles and cut-outs with the multi-routing template
  • Grooving rear panels or recessing dovetail batons with the guide system
  • Routing with the routing aid to fit Schallex, draft excluders or espagnolettes
  • Routing mineral material (max. cutter Ø 45 mm)
Faultless precision

The OF 1400 is clamped to both guide columns. This means that the router is secured in place with absolute torsional rigidity. The routing result is perfect. Time-consuming rework is a thing of the past.

70 mm routing stroke

Because of the long 70 mm routing stroke, working with large routing depths and templates or making recesses for fittings is particularly easy.

Precise fine adjustment

The OF 1400 router has a precise depth adjuster. It takes just a few seconds and minimal effort to finely adjust the routing depth accurate to a tenth of a millimetre using the dial.

Clean and healthy work

For an unobstructed view of the workpiece and a healthy working environment, the OF 1400 has an integrated extractor connector. Simply connect a mobile dust extractor from Festool for clean work.

99% dust extraction

The unique chip deflector ensures efficient dust extraction and guarantees maximum suction power when routing edges in combination with the dust extraction attachment and a Festool mobile dust extractor.

Easy handling

The on/off switch and infinite speed adjustment can be operated without changing your grip. This means that the OF 1400 sits safely and securely in your hand at all times.

Lightweight, handy, safe

Low weight – low exertion: Even when routing edges, the light weight in combination with the ergonomic rod handle is ideal for guiding the OF 1400 router safely by hand.

Parallel side fence attached in an instant

Both guide rods are fixed in place at the same time via a single rotary knob. The parallel side fence can thereby be attached and detached in no time at all.

Cutter replacement in seconds

The convenient spindle stop with rocker and ratchet principle allows you to change the router at the speed of light without removing the key.

Changes without using tools

You can change the copying ring without tools. One click to release the ring – and replacing it is just as straightforward.

For quick device changeover

Thanks to the plug-it system, the device can be changed quickly – directly via the cable and not via the socket or extractor: One cable for all devices. And even if the cable breaks, it can be replaced quickly without any problems.

Quick-acting brake

The quick stop brake ensures optimal safety when routing and the OF 1400 comes to a stop in seconds.

Systems get it done

For perfect results, Festool offers you a wide range of cutters in HS and HW quality.

CLEANTEC Connection System
Integrated bayonet fitting as the connecting element between the extractor and the tool.
FastFix
Makes changing accessories or consumables for routing, sawing, planing, sanding, drilling and screwdriving tools easier.
Guide System
Patented guide system for safe guidance of saws and routers.
MMC Electronics
Multi Material Control power electronics with adjustable constant speed and temperature monitoring for work with all types of materials.
Plug-it
Removable, replaceable power cable with safety lock for fast switchover.
Plus Systainer
Plus versions of power tools come in systainer storage containers.
Quick Acting Brake
For safe work when planing, sawing and routing.

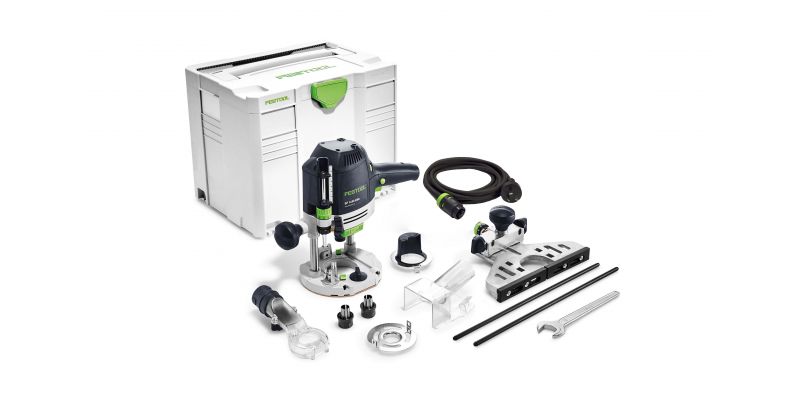

Includes
OF 1400 W Plunge Router
D 1/4 inch Collet
D 1/2 inch Collet
Copy Ring D 30 mm
Parallel Side Fence
Chip Deflector
Plug-it Lead
Systainer3 SYS3 M 337
Guide Rods
Tool Manual

Tech Specs
Tool Weight (kg) 4.5 kg
No Load Speed (rpm) 10,000 - 22,500 rpm
Dust Extraction Connection Diameter (mm) 27 mm / 36 mm
Collet Diameter (mm) 6 mm - 12.7 mm
Routing Depth Adjustment Range (mm) 70 mm
Fine Height Adjustment Range (mm) 8 mm
Maximum cutting depth, vertical 8 mm
Maximum cutting depth, horizontal 63 mm
Cutter Diameter (mm) 63 mm
Power Lead Type Plug-it Lead
Power Source Corded
Power Consumption (W or kW) 1400 W
Motor Type Brushed
