Room Air Filter - 1/6HP with 5 Micron Filter
Room Air Filter - 1/6HP with 5 Micron Filter
Room Air Filter - 1/6HP with 5 Micron Filter
Room Air Filter - 1/6HP with 5 Micron Filter

Room Air Filter - 1/6HP with 5 Micron Filter

Regular price $559.00

/
Tax included. Shipping calculated at checkout.

Only 0 items in stock!

Once you've finished cutting and sanding operations and have turned off your dust extractor and protective mask, you might think you've been sufficiently safety conscious about protection from dust inhalation. However when you see a ray of sunlight come through window you can see that that a lot dust remains suspended in the air.

This machine further enhances the safety of your workshop, by drawing air into the machine and filtering the dust then returning filtered air back into the room or shed. They can be left running quietly in the background, filtering out even the finest dust particles. To maximise your filtration capability, you can use an optional third stage charcoal odour filter that is sold separately.

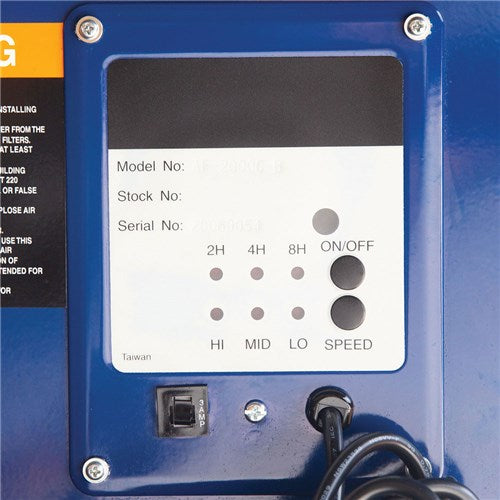

The standard AF-1000C filters >99% of particles 5 microns or larger and 85% of particles down to 1 micron and features pre-set run times of 2,4 or 8 hours.  This unit is also fitted with a diffuser on the exhaust side that provides a more even spread of clean air.

Suitable for hanging from your ceiling, mounting on a wall, on a stand or bench. Our AF-1000C 1/6hp room air filter features remote control and variable extraction capacities of 450, 550 and 650cfm.  Adding more air filters increases your air filtration capacity.

Workshop tips:

If the unit is going to be mounted to a building structure, ensure the area will support a minimum of at least 30 kg. Never mount to surfaces such as plasterboard, suspended ceiling or timber wall cladding (unless you are attaching through this, to the studs)

A good rule of thumb for calculating what approximate CFM is required to effectively filter your workshop air:

METRIC: Your workshop Length X Width X Height (meters) X  6.000 = Minimum CFM required for 10X per hour exchange
IMPERIAL: Your workshop Length X Width X Height (feet) X  0.1666 = Minimum CFM required for 10X per hour exchange

Example: 6m X 6m X 2.4m Shed you would require approx 520cfm to filter the air 10X per hour, so one AF-1000C running at its second speed would be sufficient.

Brand Carbatec
Motor 123W (1/6 HP) Induction - Regular 10A Plug
Filtration Filters 2 x (Primary & Secondary)
Room Volume 3250 Cuft - up to 12 times per hour
Workshop Footprint (WxDxH) 770mm x 610mm x 310mm
Warranty Period 3 Years
Weight 25kg
Maximum Airflow 650 CFM



Please Note: Special order item. Usually ships within 14 business days. Due to the size and weight of item a forklift is required for delivery. If no forklift available a tailgate delivery charge may be applicable.
Please contact us for an accurate postage cost & item availability.
Special order conditions apply.
