Room Air Filtration System TA25 by Oltre
Once you've finished cutting and sanding operations and have turned off your dust extractor and protective mask, you might think you've been sufficiently safety conscious about protection from dust inhalation. However when you see a ray of sunlight come through window you can see that that a lot dust remains suspended in the air.

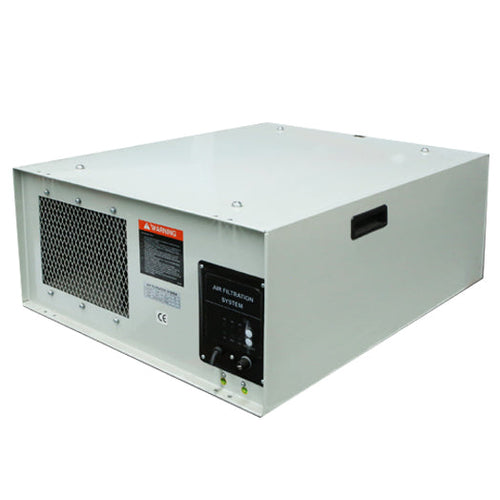

This machine further enhances the safety of your workshop; by drawing air into the machine and filtering the dust then returning filtered air back into the room or shed. They can be left running quietly in the background, filtering out even the finest dust particles.
The standard filters >99% of particles 5 microns or larger and 85% of particles down to 1 micron and features pre-set run times of 2,4 or 8 hours. This unit is also fitted with a diffuser on the exhaust side that provides a more even spread of clean air.
Suitable for hanging from your ceiling, mounting on a wall, on a stand or bench. Adding more air filters increases your air filtration capacity.
Workshop tips:
If the unit is going to be mounted to a building structure, ensure the area will support a minimum of at least 55 kg. Never mount to surfaces such as plasterboard, suspended ceiling or timber wall cladding (unless you are attaching through this, to the studs)
A good rule of thumb for calculating what approximate CFM is required to effectively filter your workshop air:
METRIC: Your workshop Length X Width X Height (meters) X 6.000 = Minimum CFM required for 10X per hour exchange
IMPERIAL: Your workshop Length X Width X Height (feet) X 0.1666 = Minimum CFM required for 10X per hour exchange
Example: 10m X 10m X 2.8m Shed you would require 1680cfm to filter the air 10X per hour, so two TA25's running at mid-high speed would be sufficient.
Technical
Motor Power (Input) 0.5HP / 370W
Air Filtration Keeps Your Shops Air Breathable
3 Speeds 556, 702, 1044CFM
Convenient Remote
Quick Release Latch System
Easily Mount On Work Bench Or Mount From Ceilings

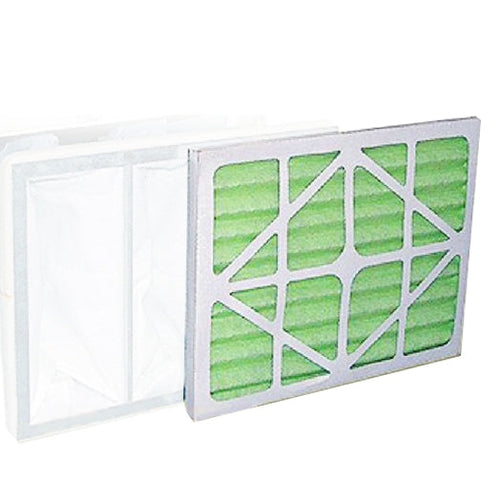

Outer Filter - Five Microns

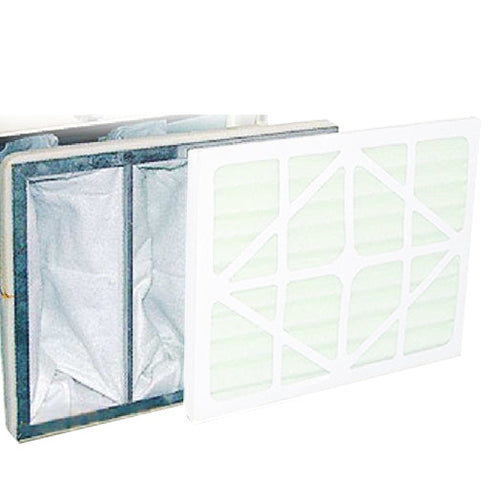

Inner Filter - One Microns
