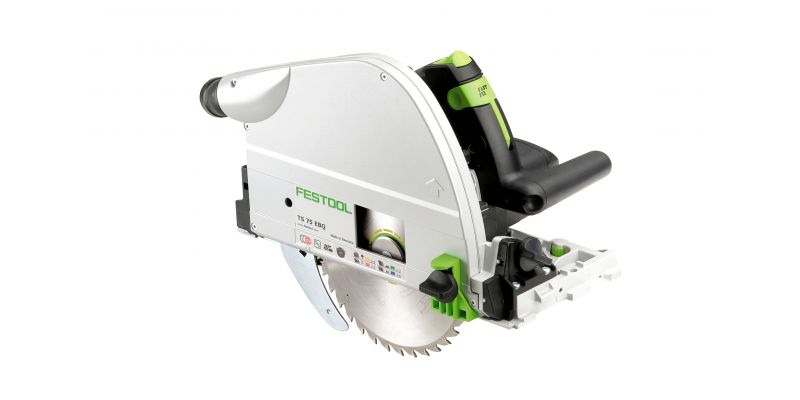

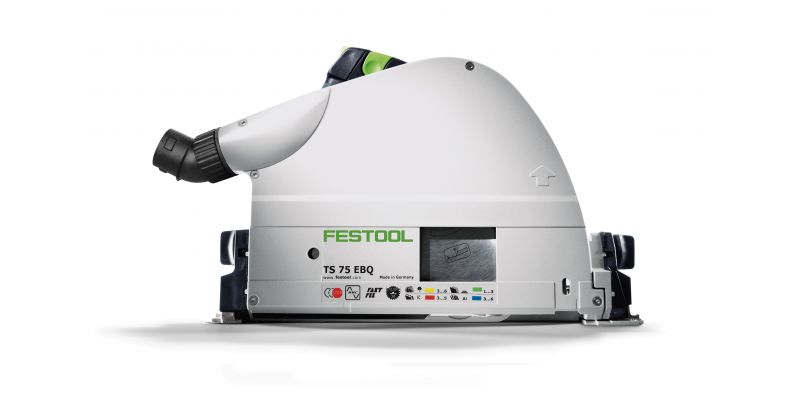

TS 75 210mm Plunge Cut Circular Saw in Systainer with 1400mm Rail - TS 75 EBQ-Plus FS

Original price $1,875.00 - Original price $1,875.00
Original price
$1,875.00
$1,875.00 - $1,875.00
Current price $1,875.00
Availability: Special Order Item. Allow PRE-ORDER ETA EXPECTED EARLY-MID OCTOBER business days before collection or postage.

For a greater cutting depth up to 75 mm. Follows only one line. Accurate to the millimetre and without splinters. With the necessary force for each material – lightweight and easy to handle. And the motor with three bearings including MMC electronics for an exceptional service life. The TS 75 combines considerable power and a light weight in a compact device. Together with the guide rail, the TS 75 ensures flexible, fast and precise work.

Main Applications

  • Precise circular in materials up to 75 mm thick
  • Cutting house doors to length using guide rail and circular saw
  • Cutting and machining conservatory profiles
  • Cutting cable ducts to length cleanly and easily
  • Accurately cutting false floors to size
  • Cutting multilayered boards
With one cut through thick and thin

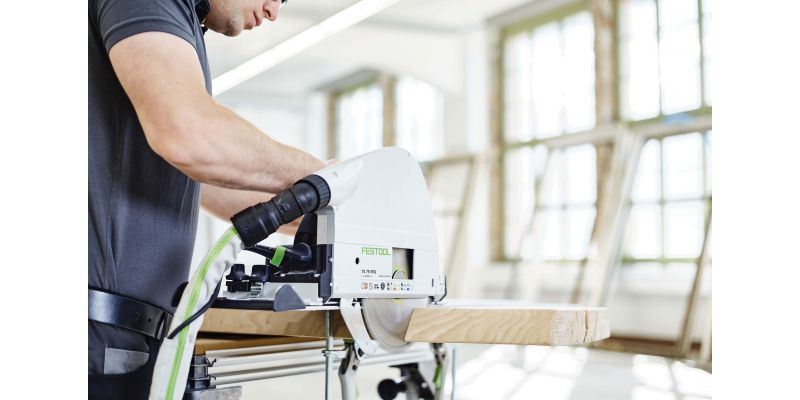

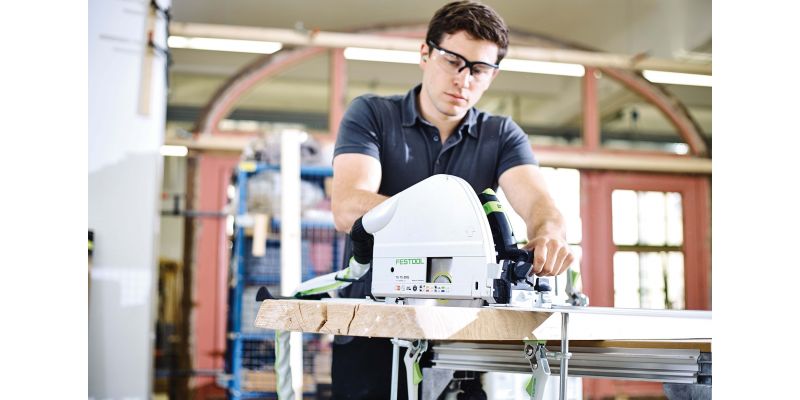

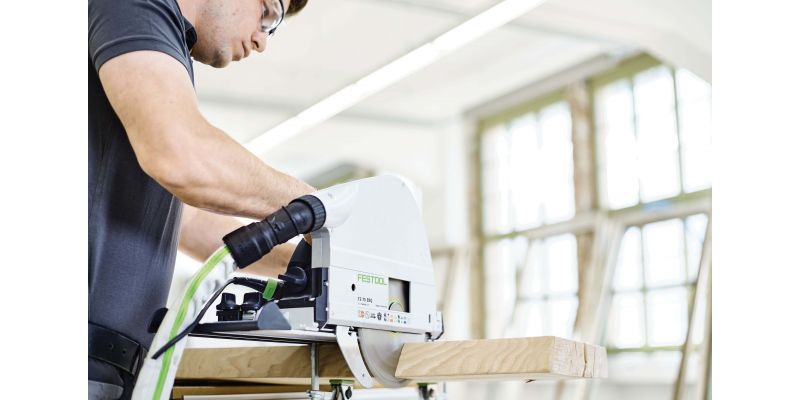

With a cutting depth of 75 mm and a power of 1600 watts, even thick workpieces can be sawed with a single cut. The time-consuming task of machining two sides is a thing of the past. This minimises reworking and saves the laborious process of rotating the workpiece.

Safe working

The kickback stop prevents kickbacks when inserting the saw. Always to hand in the practical holder, it guarantees safe work.

FastFix saw blade changing system

Work adapted to the material. The FastFix spindle stop makes it extremely easy to change the saw blade. This way, you are always working with the right saw blade and sawing at a speed adapted to the material.

Extended service life

The triple bearing of the motor improves the running smoothness and extends the service life.

Exact depth setting

You can set the cutting depth accurate to the millimetre using the latching depth stop.

MMC electronics

Perfect adaptation to the working material, controlled speed and temperature monitoring. The quick-acting brake improves safety by stopping the saw blade in seconds.

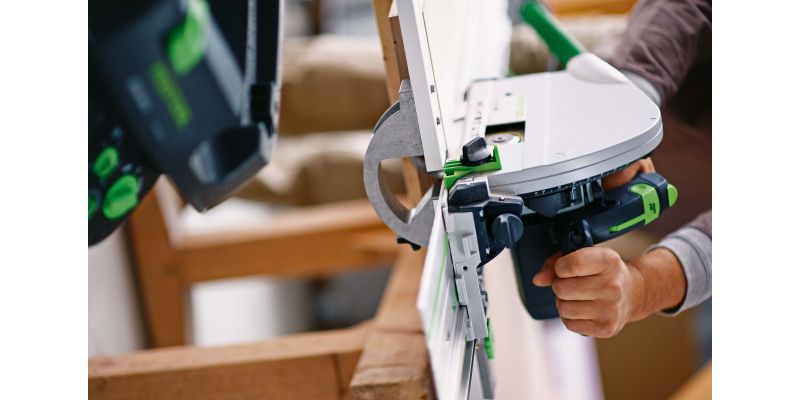

Safe and clean insertion

The spacer wedge is spring loaded and slides back into the housing automatically when placed on the workpiece. Once the machine is inserted, the spacer wedge moves into the saw groove and prevents the saw blade from getting jammed. This means that the spacer wedge is always on the saw, ensuring safety at all times.

Additional safety

If the saw blade gets jammed, the sliding clutch prevents the saw from jolting back.

Dust-free work

The extractor connector, which can be rotated by 360°, makes it exceptionally easy to adjust the dust extractor to suit the working position.

CLEANTEC Connection System
Integrated bayonet fitting as the connecting element between the extractor and the tool.

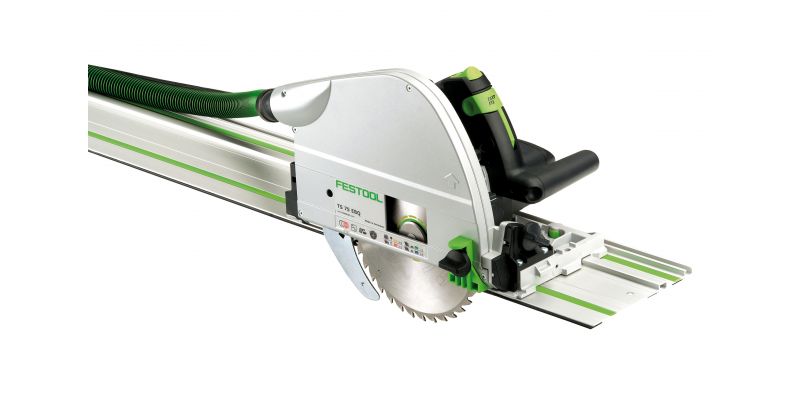

Guide System
Patented guide system for safe guidance of saws and routers.
FastFix
Makes changing accessories or consumables for routing, sawing, planing, sanding, drilling and screwdriving tools easier.
MMC Electronics
Multi Material Control power electronics with adjustable constant speed and temperature monitoring for work with all types of materials.
Plug-it
Removable, replaceable power cable with safety lock for fast switchover.
Plus Systainer
Plus versions of power tools come in systainer storage containers.
Quick Acting Brake
For safe work when planing, sawing and routing.
Splinterguard
Patented splinterguard for splinter free cuts on both sides when sawing.

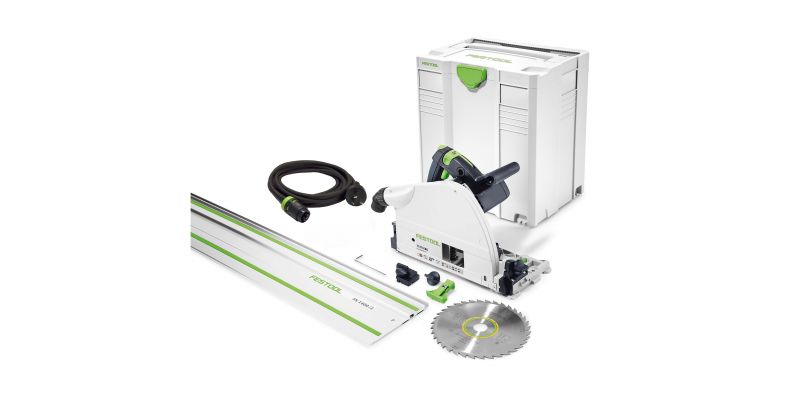

Includes
TS 75 Circular Saw
Universal Saw Blade HW W36
Splinterguard
Kickback Stop
FS 1400 mm Guide Rail
Plug-it Lead
SYS 5 T-LOC Systainer
Tool Manual

Tech Specs
Tool Weight (kg) 6.2 kg
Power consumption 1600 W
No Load Speed (rpm) 1,350 rpm - 3,550 rpm
Saw Blade Diameter (mm) 210 mm
Cutting Depth (mm) 0 mm - 75 mm
Cutting Depth at 45° (mm) 55 mm
Cutting Depth at 45°/90° 0-55 / 0-75 mm
Dust Extraction Connection Diameter (mm) 27 mm / 36 mm
Bevel Angle Range (°) 0° to 47°
Power Lead Type Plug-it Lead
Power Source Corded
Power Consumption (W or kW) 1,600 W
Motor Type Brushed
